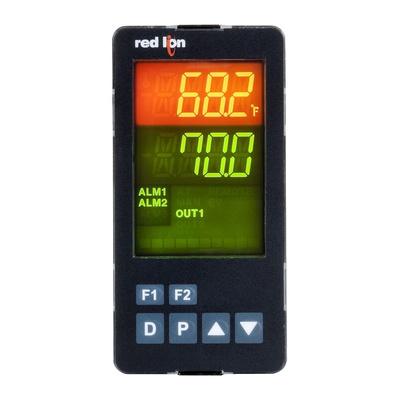

PAX2C Dual Line PID Temperature Controller
PAX2C PID controller from Red Lion offers a configurable seven zone tri-colour display with bar graphs and selectable unit annunciators. It can be populated in more than 150 configurations to address a wide range of control applications or even perform multi-zone PID control on a single display.
• PID control with reduced overshoot
• Universal process, thermocouple, RTD, voltage, current and resistance input
• Programmable dual-line display
• Tri-colour display with 6 programmable zones
• Up to 16 alarms with Boolean logic functionality
• Customise outputs and communications capabilities using field installable option cards
• Built-in USB programming port for configuration with Crimson® programming software
• NEMA 4X/IP65 sealed front bezel

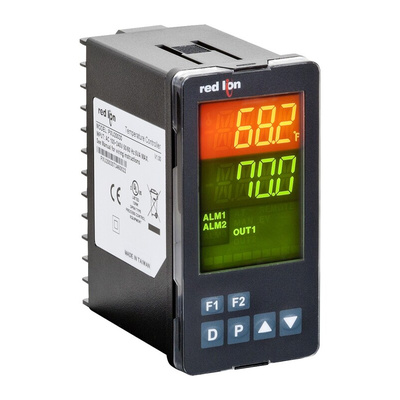

Red Lion Temperature Controller
The Red Lion PXU series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN)device. It provides a solid-state output. The device offers a configurable, 7 zone, tri-colour display with bar graphs and selectable unit annunciators. It can be populated in more than 150 configurations to address a wide range of control applications or even perform multi-zone PID control on a single display.
Features and Benefits
Built-in USB programming port for configuration with Crimson programming software
Customise outputs and communications capabilities using field installable option cards
PID control with reduced overshoot
Programmable dual-line display
RS-485 serial communication (optional)
Up to 16 alarms with Boolean logic functionality
Applications
Factory automation
Food and beverage
Manufacturing
Plastic extrusion
Certifications
CE certified
Emission CISPR 11 Class A
EN 61010-1
EN 61326-1 Immunity to industrial locations
NEMA 4X/IP65 sealed front bezel
RoHS compliant
UL approved
UL listed: File #E179259
Red Lion Temperature Controllers
