TCM10000, Red Lion Converter Module, Реле

Converter Modules

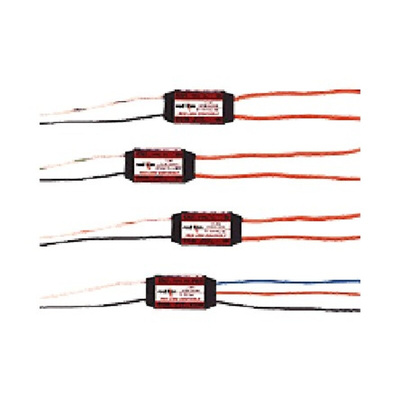

The TRIAC converter module is a specialized version of the Voltage converter module. It is specifically designed to operate with photo-electric sensors and programmable controllers that have 115 V ac triac outputs. Due to protective suppression circuits connected in parallel with triacs, these outputs have a high OFF-State Leakage current, which, if unloaded, is sufficient to keep a voltage converter in the ON condition continuously.
The triac incorporates a current bias that offsets output leakage currents of up to 4 mA and allows the application of RLC Counters to most unloaded triac outputs. These modules are available for operation with 115 VAC ±10% 50/60 Hz only. They operate at count rates up to 10 cps, and also provide input/output electrical isolation. Connections for the TCM are the same as
those for the voltage module. The Triac accepts unloaded, high off-state leakage triac output from sensors and programmable controllers.

Adapts many Red Lion controls, counters and accessories
Input 115 V ac +/- 10% (50/60Hz) 10 mA maximum current draw
Frequency 10 Hz maximum output
Output solid state DC contact closure
Output rating 30 V dc at 100 mA
Output isolation 2300 VRMS

TRIAC Converter Module
