0590 7551, Testo 755-1, LCD Voltage tester, 600V ac/dc, Continuity Check, Battery Powered, CAT 3 1000V

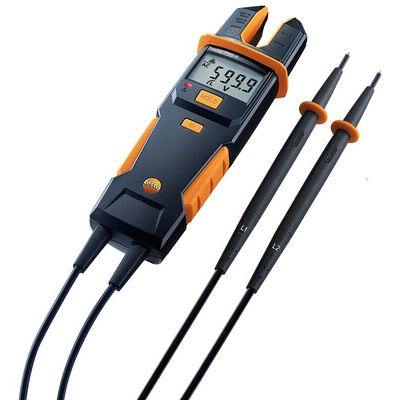

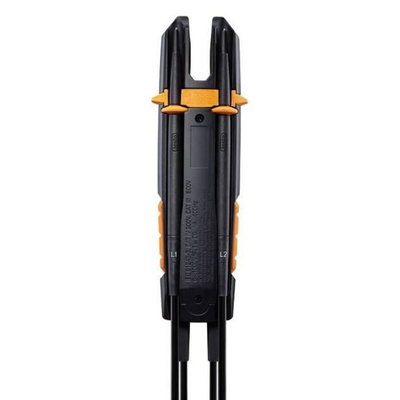

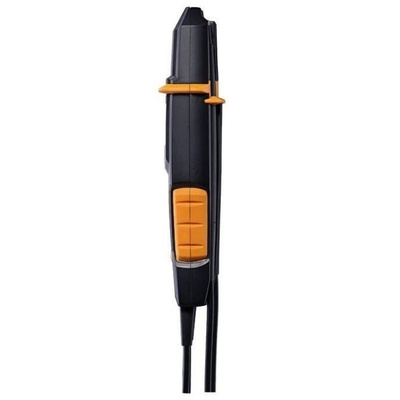

Testo 755 Voltage Tester

Testo 755 are the first current/voltmeter which meet the requirements of a voltmeter which can also measure current. The voltmeter automatically selects the correct settings preventing dangerous incorrect settings.

They are suitable for all daily electrical measuring tasks. The voltmeter automatically selects the right settings and therefore prevents dangerous incorrect settings every time they are used. Both devices have all the important functions for determining voltage/de-energization, for measuring current and resistance and for continuity tests. The integrated torch enables dark spots to be illuminated. The measuring tips can be changed easily so that the whole instrument does not need replacing.

Testo 755-2 model is differentiated by the larger current range of up to 1000 V. Featuring distinct functions such as single pole phase testing and rotating magnetic field measurement.

Automatic measurement parameter detection
Certified to DIN EN 61243-3:2010
Measurement result without any switching on or selection

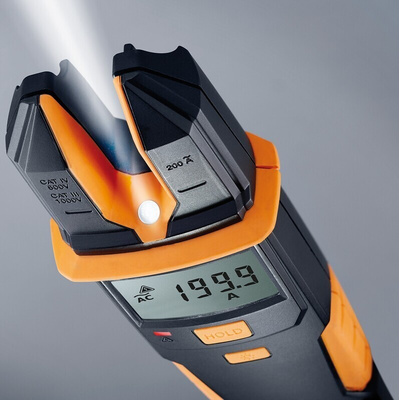

Measuring point illumination
Exchangeable measuring tips
IP64 Rated
Measurment Category: CAT IV 600 V, CAT III 1,000 V

Standards

EN 61243-3:2010, EN61010-1

Approvals

TÜV, CSA & CE

Supplied with

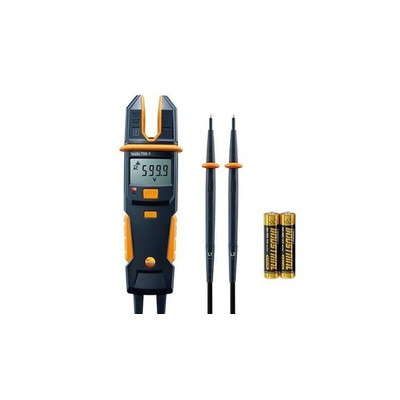

Testo current/voltage tester, batteries and measuring tips.

Voltage Level Indicators

A range of voltage testers each available in versions suitable for electronic or electrical applications.

Datasheet

Testo 755

Instruction Manual
