0590 7602, Testo 760-2 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 600V ac Max, Мультиметр

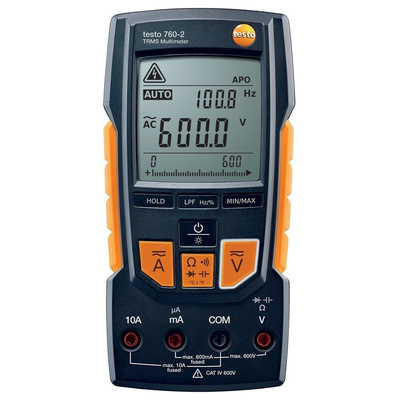

Testo 760-2 True RMS Digital Multimeter

The Testo 760-2 digital multimeter, one of three available in the range. The 760 series is designed for important electrical measuring tasks offering new function keys that replace the traditional dial which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys.
The Testo 760-2 has a large current measurement range, the true root mean square measurement (TRMS) and a low pass filter. It also has a voltage range of up to 600 V along with higher measuring ranges for frequency and capacitance.

Features and Benefits

• Testo 760-2 TRMS digital multimeter
• Easy, modern operation with function keys instead of a dial
• Measurement parameter detection and selection via the socket assignment
• Prevents incorrect settings
• Large, backlit display
• IP64 Rated
• 0.1% accuracy
• 10A ac, 600 V ac
• Measurement Category: CAT IV 600 V, CAT III 1000 V

Testo 760 Digital Multimeters

• Testo 760-1 = RS Stock no: 905-5885 (Includes batteries and 1 set of measuring cables)
• Testo 760-2 = RS Stock no: 905-5888 (Includes batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples)
• Testo 760-3 = RS Stock no: 905-5882 (Includes batteries and 1 set of measuring cables)

Why would you buy it?

The Testo 760-2 is the perfect tool to handle all your electrical measurement needs. The exclusive auto test-setup feature detects your lead connection and prevents switching between volts and amps to prevent damage if the leads aren’t in the proper sockets.

FAQ’s

Q: Can I use this to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.

Q: Is this multimeter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.

Q: Does this come with a calibration certificate?
A: RS offer calibrated options for this product and supplies all the appropriate certifications.

Standards

EN 61326-1

Approvals

TÜV, CSA & CE

Supplied with

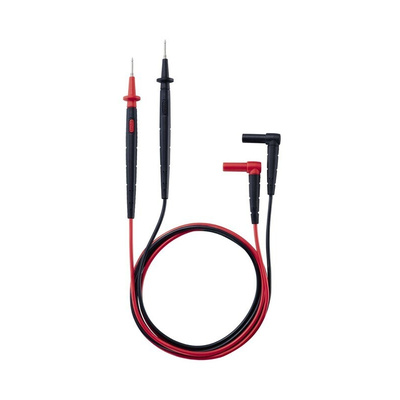

Testo 760-2 TRMS multimeter, batteries, 1 set of measuring cables and 1 adapter for type k thermocouples.

Testo Handheld Digital Multimeter, 0.1mV to 600V AC, -20°C to +500°C - 760 Series - 0590 7602

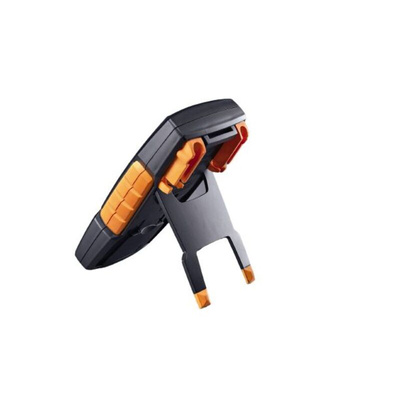

This digital multimeter from Testo is used to measure the electrical characteristics of cables and equipment. It has function keys instead of conventional dials, so it's easier to operate. Thanks to its large backlit liquid-crystal display (LCD) screen, you can see values clearly, even in the dark. It also comes with a bipod so you can stand it up for convenient hands-free use. As it has a light weight of 268g and compact dimensions of 167 (length) x 84 (width) x 45mm (height), this device is portable and easy to carry around.

Features & Benefits

• IP64 (ingress protection) rating means it can withstand dust and water splashes
• Wide operating temperature range of -10°C to +50°C for use in harsh environments
• Battery-powered for convenient, portable use

Applications

• Industrial electrical wiring installation
• Automotive industry
• Electronics testing

How accurate is this multimeter?

This multimeter has an accuracy of 0.1%, meaning it can be used for precision measurements.

Can I use this multimeter with a thermocouple?

Yes, this multimeter is supplied with an adapter for use with a type K thermocouple.
