0590 7703, Testo 770-3 Bluetooth AC/DC Clamp Meter, 600A dc, Max Current 600A ac CAT 3 1000 V, CAT 4 600 V

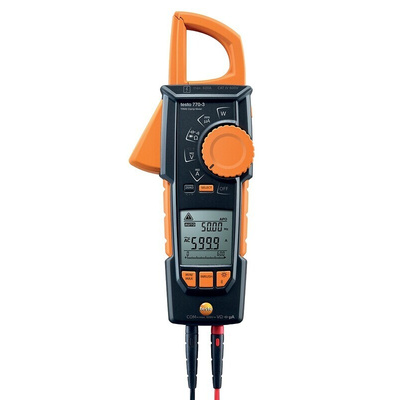

Testo 770-3 Clampmeter

Testo 770-3 is suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also enables reliable work. Testo 770-3 detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.

The clamp meter also has a μA range as well an integrated temperature adapter for all type K thermocouples. It also offers a performance measurement function which can be connected with the Testo Smart Probes APP by Bluetooth.

Benefits

No more problems grabbing cables in confined spaces
Grab cables with the clamp instead of touching them
Clear visible measurement results

Standards

EN 61326-1, EN 61140

Approvals

TÜV, CSA, CE

Supplied with

Testo 770-3 TRMS clamp meter, batteries and 1 set of measuring cables.

Testo Clamp Meter

The Testo clamp meter is a new age device that measures the current range between 0.1 to 600A AC/DC and voltage range between 1mV to 600VAC/DC. The user can fully retrace the movable pincer arm into an instrument for various functions such as tightly grabbing the packed cables in switching cabinets like a hook. This device helps in convenient measurements this in tight spots. The clamp meter also has a μA range as well an integrated temperature adapter for all type K thermocouples. It also offers a performance measurement function which can be connected with the Testo Smart Probes APP by Bluetooth. It includes the 3xAAA micro-batteries and 1 set of measuring cables.

Features and Benefits

1mV to 600V AC/DC voltage measurement
0.1ohm to 60Mohm resistance measurement
0.001Hz to 10kHz frequency measurement
0.001μF to 60,000μF capacitance measurement
-20°C to 500°C temperature measurement
Power measurement
Bluetooth connection to your smartphone (with the test smart probes App)
Innovative clamp mechanism for easy operation in narrow spaces
Continuity testing
Diode test
Improved TRMS method
Easy to operate, fully retractable pincer arm
No more problems grabbing cables in confined spaces
Auto AC/DC and large two-line display and clear visible measurement results
6,000 display (counts)
Inrush current measurement
Automatic measurement parameter detection
Operating temperature ranges between -10°C and 50°C

Applications

Petrochemical
Oil and gas
Food and beverage
Pharmaceutical

Certifications

CSA
CE
TÜV
EN 61326-1
EN 61010-2-032
EN 61140
CAT IV 600V, CAT III 1,000V safety rated
