FLUKE-374 FC, Fluke 374 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V

Fluke 370 FC Series True RMS Wireless AC/DC Clamp Meters

Fluke 370 FC clamp meters are CAT IV 600 V, CAT III 1000 V safety-rated instruments offering advanced troubleshooting performance to capture a wide range of measurements with a single tool. The 370 FC clamp meters log measurements to pinpoint intermittent faults precisely, without the need for the technician to be present. The measurements can then be wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud. This improves safety by keeping technicians outside the arc flash zone and away from dangerous moving machinery.

Fluke 370 FC models are:
374 FC ( 905-5911 ) 600 A, 6000 Ω
375 FC ( 905-5917 ) 600 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz
376 FC ( 905-5914 ) 999.9 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz.

Features & Benefits

• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True RMS voltage and current for accurate measurements on non-linear signals
• Expanded measurement range to 2500 A ac with the iFlex flexible current probes, which provide access to large conductors in tight spaces
• Integrated variable frequency drive low pass filter for accurate motor drive measurements (376 FC and 375 FC models only)
• 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC models only)
• Connect your meter to your smartphone with Fluke Connect Measurements
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Compatible with TPAK magnetic hanging strap

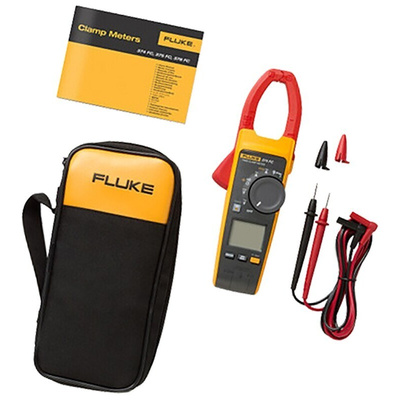

Supplied with

TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

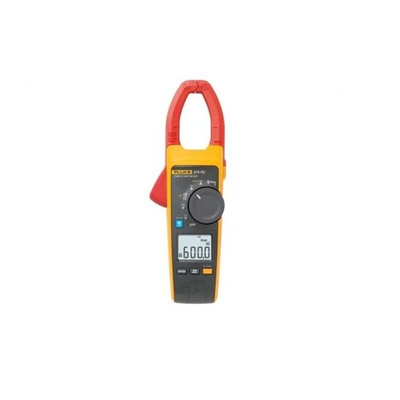

FLUKE 374 FC Clamp Meter, 1000V Maximum Voltage, Bluetooth Connectivity - 370 FC Series

Make troubleshooting and reporting a breeze with the 374 FC clamp meter from FLUKE. It lets you pinpoint and analyse intermittent faults in your electrical system with zero hassle. The clever tool takes true-RMS measurements of AC and DC voltage and current, as well as frequency, resistance and capacitance. You simply connect it to your phone using the Fluke Connect Measurements app to check readings from a safe distance and save them on the Fluke Cloud. You can also create reports in the field and share them via email or ShareLive video calls.

Fluke 374 FC Clamp Meter Features & Benefits

• Measures AC and DC current up to 600A for versatile use
• Runs on two AA batteries, included in the set
• Backlit LCD display for clear readings
• FLUKE's in-rush measurement tech filters out noise to show you the motor starting current as the circuit protection sees it
• Wide operating temperature range of -10°C to +50°C

Applications

• HVAC systems
• Factory buildings
• Industrial automation
