Fluke 376 FC Clamp Meter Bluetooth, 999.9A dc, Max Current 2.5 (Probe) kA ac CAT III 1000 V, CAT IV 600 V

Fluke 376 FC True-RMS Clamp Meter

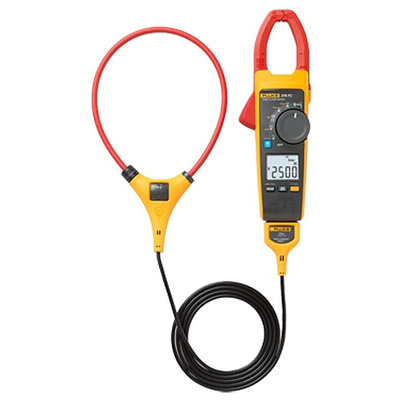

The Fluke 376 FC True-RMS clamp meter measures current up to 999.9A AC/DC via jaw, 2500A AC via iFlex and voltage up to 1000VAC/DC. It enables you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity. Connect your meter to your smartphone using Fluke connect measurements app to increase the troubleshooting power of clamp.
Note:
Measurement data from 370 FC Series clamp meters and other test tools can be wirelessly transmitted to smartphones for storage on the Fluke Cloud™ and for team access from the field (subject to the wireless service area, plan pricing and other criteria).

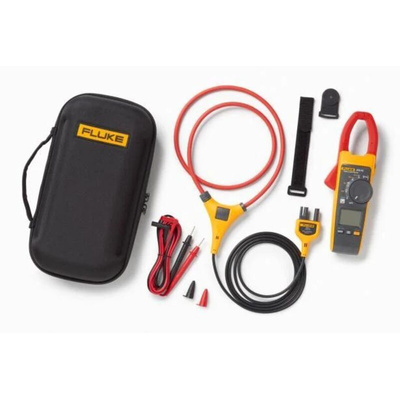

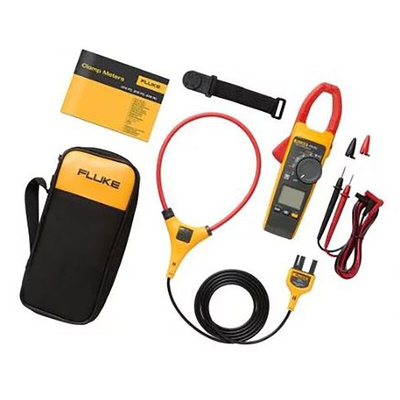

The Fluke 376 FC is supplied with:
TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

Features and Benefits

60kohm resistance measurement with continuity detection
Frequency measurement up to 500Hz with both, jaw and iFlex
Minimum, maximum, average and inrush recording to capture variations automatically
True RMS AC voltage and current for accurate measurements on non-linear signals
500mV DC measurement range to interface with other accessories
1000μF capacitance measurement

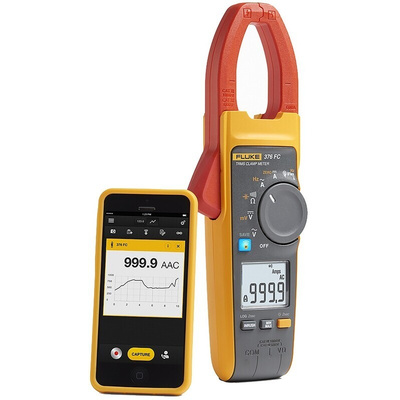

Connect your meter to your smartphone with fluke connect measurements

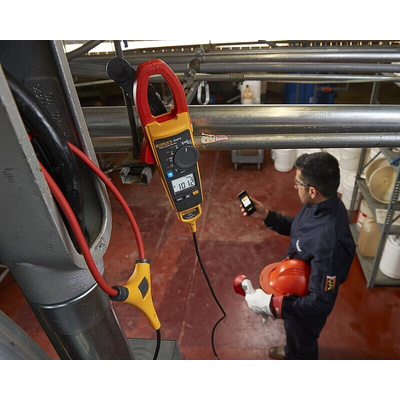

Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
Records result directly to your phone and the cloud
Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Compatible with TPAK magnetic hanging strap
Low pass filter for stable readings in noisy environments
Hold button
Soft carrying case

Applications

The Fluke 376 FC True RMS clamp meter is ideal for:
Electricians
Commercial sites
Residential plant maintenance
Home inspections
HVAC/R

Certifications

CE certified
cUS approved
TUV approved
IEC/EN 61010-1:2001

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Datasheet

Application Note - Tiered Maintenance

Datasheet - FLUKE - 376 FC

Manual - 374 FC/375 FC/376 FC
