1587K1T62MAXFC, Fluke 1587 Multimeter Kit, Комплект

Fluke 1587 FC Advanced Technology Digital Multimeter Kit

Designed for preventative maintenance, this advanced electrical troubleshooting kit brings together 3 Fluke devices. A great value bundle and addition to any electrician or technicians tool box.

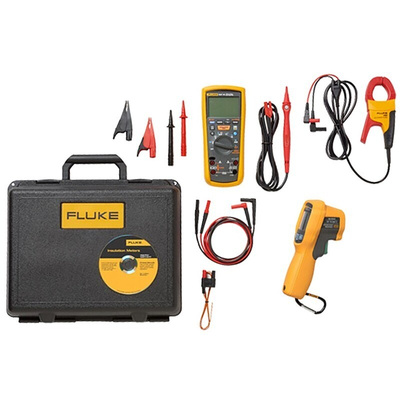

Kit includes:

Fluke 1587 Digital Multimeter (905-5920)
Fluke i400 AC Current Probe (520-2532)
Fluke 62 MAX+ Infrared Thermometer (760-0389)
TL224 ToolPak Kit Test Leads (450-2358)
AC280 SureGrip Test Leads (850-7694)
80BK Integrated Probe (480-2399)
AC285 Alligator Clips (451-1431)
TP165X Remote Probe (468-0616)
CD-ROM
Hard Case with Handle

Fluke 1587 FC 2-in-1 Insulation Digital Multimeter

Pl/DAR measurements with TrendIt™ graphs
Memory storage through Fluke Connect Measurements app
Temperature Compensation through Fluke Connect Measurements app
VFD low-pass filter for accurate motor drive measurements
Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation test voltages 500 V, 1000 V
Insulation test: 0.01 MΩ to 2.0 GΩ
Insulation test: 0.1 MΩ to 600 MΩ
Auto-discharge of capacitive voltage
Insulation test smoothing reading
Frequency / Capacitance / Diode test / Temperature
Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
Resistance (0.1 Ω to 50 MΩ) / Continuity / Auto power off

Fluke i400 AC Current Clamp

Use with your Fluke 1587 FC to measure 1A AC to 400 A AC
1 mA/Amp output guarantees easy reading CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
Specially designed to offer maximum utility in a very compact shape
Maximum conductor: Ø 32 mm

Fluke 62 MAX+ Infrared Thermometer

Temperature range -30°C to 650°C (-22°F to 1202°F)
Accuracy ±1.0°C or ±1.0% of reading, whichever is greater
-10°C to 0°C: ±2.0
-30°C to -10°C: ±3.0
Response time (95%) Fluke 62 MAX+ < 300 ms (95% of reading)
Spectral response 8 to 14 microns
Emissivity 0.10 to 1.00
Optical resolution 12:1 (calculated at 90% energy)
Display resolution 0.1°C (0.2°F)
Repeatability of readings ±0.5% of
Reading or < ±0.5°C (1°F), whichever is greater
Power AA battery

FLUKE Multimeter Kit, 1.5m Probe, Includes Infrared Thermometer - 1587K1T62MAXFC

Get the lowdown on performance in your electrical applications with this 10-piece multimeter kit from FLUKE. It includes a digital multimeter (905-5920), a current clamp (520-2532) and an infrared thermometer (760-0389). The multimeter measures the current and voltage levels in your circuit, while the clamp expands its measuring scope. With a dual laser feature, the infrared thermometer checks the temperature range from a distance, and it's accurate to ±1% for precise and reliable measurements. Test leads and alligator clips ensure you have everything you need to carry out the task.

Features & Benefits

• Multimeter automatically powers off when not in use to conserve energy
• Durable thermometer can survive a 3m drop without taking damage
• Hard carrying case provides safe storage and transportation of kit
• Multimeter is compatible with Fluke Connect software for remote monitoring and data logging

Applications

• Industrial robotics
• Packaging facilities
• Automation systems

How do I power the multimeter and thermometer in this kit?

The multimeter and thermometer are powered by four AA batteries and one AA battery respectively, for convenient use without the fuss of finding an external power source.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Note

Please note that when ordering the calibrated version of this item only the Insulation Tester will be calibrated. Please contact use for calibration of the additional items.

Fluke 1587 FC/1577
