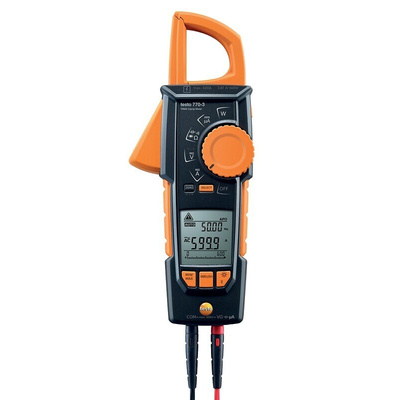

0590 7703, Testo 770-3 Clamp Meter Bluetooth, Max Current 600A ac CAT III 1000V With RS Calibration

Testo 770-3 Clamp Meter With Retractable Arm, 600V AC/DC, Bluetooth-Enabled

Safely measure current and voltage transmission in your cables with the 770-3 clamp meter from Testo. Its hinged jaw reads current directly, eliminating the need to cut the wire or turn off the circuit for added convenience. It's compatible with both AC (alternating current) and DC (direct current), so you can use it for a range of applications. This unit also measures resistance, frequency, capacitance and temperature for increased versatility. As it's a true RMS (root mean square) measuring unit, it effectively reads both regular and irregular loads for enhanced accuracy.

Features & Benefits

• Bluetooth capability for simple remote access to data
• Broad operating temperature range of -10°C to +50°C for use in harsh environments
• Clear LCD (liquid-crystal display) ensures values are easy to read

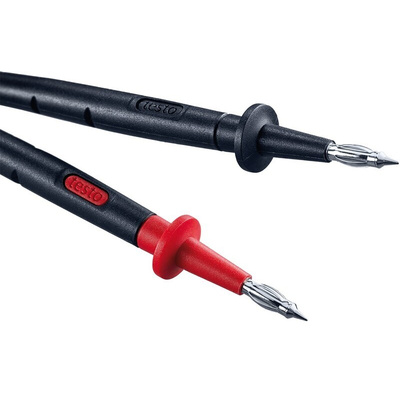

• Supplied with measuring cables for an extended reach
• Light weight of 302g for portability and ease of handling

Applications

• Manufacturing industry
• Equipment maintenance
• Electrical system installation

Where can I use the 770-3 clamp meter?

This clamp meter is particularly suitable for use in tight, hard-to-reach places thanks to its retractable arm. This makes it a good choice for use in switching cabinets, crowded control panels and server racks.
