0590 7552, Testo 755-2, LCD Voltage tester, 1000V, Continuity Check, Battery Powered, CAT III 1000V With RS Calibration

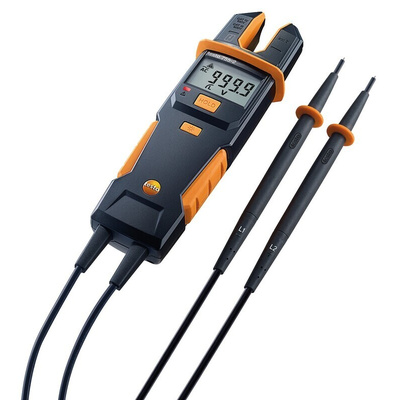

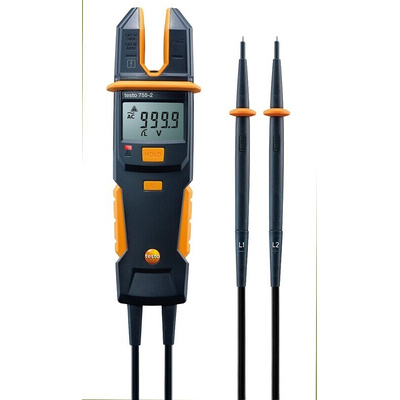

Testo 755 Voltage Tester

Testo 755 are the first current/voltmeter which meet the requirements of a voltmeter which can also measure current. The voltmeter automatically selects the correct settings preventing dangerous incorrect settings.

They are suitable for all daily electrical measuring tasks. The voltmeter automatically selects the right settings and therefore prevents dangerous incorrect settings every time they are used. Both devices have all the important functions for determining voltage/de-energization, for measuring current and resistance and for continuity tests. The integrated torch enables dark spots to be illuminated. The measuring tips can be changed easily so that the whole instrument does not need replacing.

Testo 755-2 model is differentiated by the larger current range of up to 1000 V. Featuring distinct functions such as single pole phase testing and rotating magnetic field measurement.

Automatic measurement parameter detection
Certified to DIN EN 61243-3:2010
Measurement result without any switching on or selection

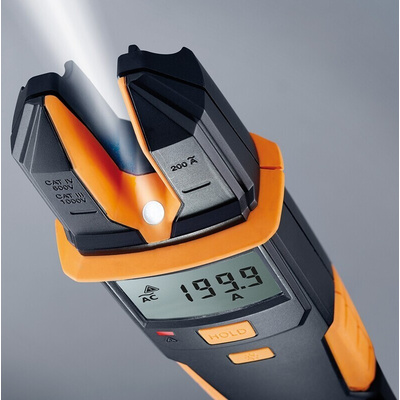

Measuring point illumination
Exchangeable measuring tips
IP64 Rated
Measurment Category: CAT IV 600 V, CAT III 1,000 V

Standards

EN 61243-3:2010, EN61010-1

Approvals

TÜV, CSA & CE

Supplied with

Testo current/voltage tester, batteries and measuring tips.

Testo Voltage Tester, 6 to 1000V, -10°C to +50°C - 755 Series - 0590 7552

This voltage tester from Testo maximises safety by swiftly providing you with clear voltage readings from a circuit. It's commonly used for a continuity check to quickly determine if a circuit is live. For added versatility, it can also be used to measure current and resistance. It has an integrated torch that points light at the measurement location for ease of use in dark or dimly lit areas. The device has an LCD screen for clear display of results. It comes with a set of additional measuring tips for ease of replacement in the event of damage or wear.

Features & Benefits

• IP64 (ingress protection) rating for protection against dust and water splashes
• Wide operating temperature range of -10°C to +50°C for use in hot and cold environments
• Wide measuring voltage range of 6 to 1000V for use in low and high-voltage applications

Applications

• Household appliances
• Fuse boxes
• Machine maintenance
• Light fittings
• Device troubleshooting

How large is this voltage tester?

This voltage tester has compact dimensions of 199 (length) x 62 (width) x 40mm (height) for ease of handling and portability.

Voltage Level Indicators

A range of voltage testers each available in versions suitable for electronic or electrical applications.

Datasheet

Testo 755

Instruction Manual
