0590 7601, Testo 760-1 Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated, Мультиметр

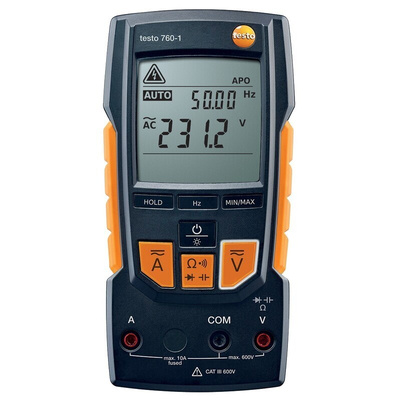

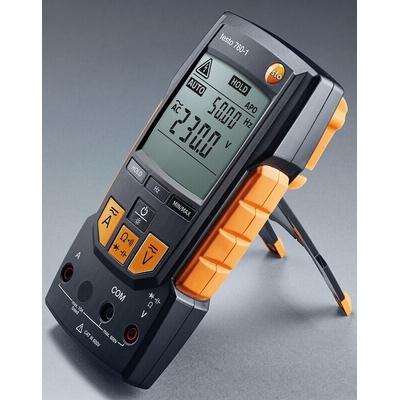

Testo 760-1 Digital Multimeter

The Testo 760-1 digital multimeter, one of three available in the range. The 760 series is designed for important electrical measuring tasks offering new function keys that replace the traditional dial which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys.

Features and Benefits

• Testo 760-1 digital multimeter
• Easy, modern operation with function keys instead of a dial
• Measurement parameter detection and selection via the socket assignment
• Prevents incorrect settings
• Large, backlit display
• IP64 Rated
• 0.8% accuracy
• 10A ac, 600 V ac
• Measurement Category: CAT IV 300 V, CAT III 600 V

Testo 760 Digital Multimeters

• Testo 760-1 = RS Stock no: 905-5885 (Includes batteries and 1 set of measuring cables)
• Testo 760-2 = RS Stock no: 905-5888 (Includes batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples)
• Testo 760-3 = RS Stock no: 905-5882 (Includes batteries and 1 set of measuring cables)

Why would you buy it?

The Testo 760-1 is the perfect tool to handle all your electrical measurement needs. The exclusive auto test-setup feature detects your lead connection and prevents switching between volts and amps to prevent damage if the leads aren’t in the proper sockets.

FAQ’s

Q: Can I use this to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.

Q: Is this multimeter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.

Q: Does this come with a calibration certificate?
A: RS offers calibrated options of this product and supplies all the appropriate certifications.

Standards

EN 61326-1

Approvals

TÜV, CSA & CE

Supplied with

Testo 760-1 multimeter, batteries and 1 set of measuring cables.

Testo Multimeter, 10A AC/DC, 268g - 760 Series - 0560 6220

This multimeter from Testo measures the electrical values of your components and circuits. It's a compact, portable digital device with a light weight of 268g for ease of handling. It measures voltage, current, resistance, frequency and capacitance, so you can measure a broad range of values. The device has an easy-to-read display screen and input jacks so you can connect the leads to your application. Its seven buttons allow you to easily configure and control the device according to your needs.

Features & Benefits

• Comfortable ergonomic handle design offers enhanced grip
• Back stand allows for hands-free use
• Area-sensitive calculations automatically prevent incorrect measurements for ease of use
• Provides true root mean square (TRMS) measurements that don't require user calculations, making it easy to use
• IP65 (ingress protection) rating means the device is shielded against dust and low-pressure water jets

Applications

• Device troubleshooting
• Home reports
• Machine maintenance
• Light fittings
• Fuse boxes

What temperatures can I use this multimeter in?

This multimeter is suitable for use across a broad operating temperature range of -10°C to +50°C, making it a good choice for use in harsh environments.
