0590 7602, Testo 760-2 Handheld Digital Multimeter, With UKAS Calibration, Мультиметр

9056872
Номер производителя: 0590 7602Производитель: Testo
Цена за шт.
79800.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

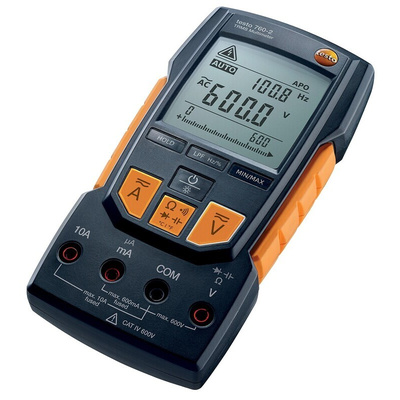

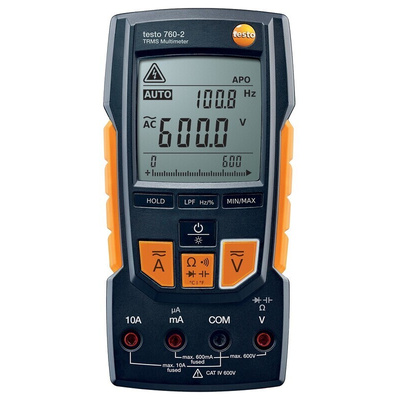

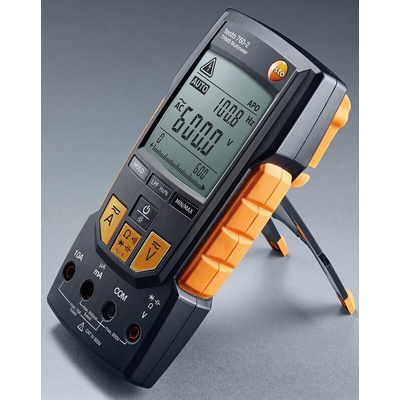

Testo 760-2 True RMS Digital Multimeter

The Testo 760-2 digital multimeter, one of three available in the range. The 760 series is designed for important electrical measuring tasks offering new function keys that replace the traditional dial which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys.
The Testo 760-2 has a large current measurement range, the true root mean square measurement (TRMS) and a low pass filter. It also has a voltage range of up to 600 V along with higher measuring ranges for frequency and capacitance.

Features and Benefits

• Testo 760-2 TRMS digital multimeter
• Easy, modern operation with function keys instead of a dial
• Measurement parameter detection and selection via the socket assignment
• Prevents incorrect settings
• Large, backlit display
• IP64 Rated
• 0.1% accuracy
• 10A ac, 600 V ac
• Measurement Category: CAT IV 600 V, CAT III 1000 V

Testo 760 Digital Multimeters

Testo 760-1 = RS Stock no: 905-5885 (Includes batteries and 1 set of measuring cables)
Testo 760-2 = RS Stock no: 905-5888 (Includes batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples)
Testo 760-3 = RS Stock no: 905-5882 (Includes batteries and 1 set of measuring cables)

Why would you buy it?

The Testo 760-2 is the perfect tool to handle all your electrical measurement needs. The exclusive auto test-setup feature detects your lead connection and prevents switching between volts and amps to prevent damage if the leads aren’t in the proper sockets.

FAQ’s

Q: Can I use this to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.

Q: Is this multimeter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.

Q: Does this come with a calibration certificate?
A: RS offer calibrated options for this product and supplies all the appropriate certifications.

Standards

EN 61326-1

Approvals

TÜV, CSA & CE

Supplied with

Testo 760-2 TRMS multimeter, batteries, 1 set of measuring cables and 1 adapter for type k thermocouples.

Testo

Техническая спецификация
pdfDatasheet
pdfInstruction Manual
True RMS:
Да
Абсолютная максимальная температура измерения:
+500°C
Абсолютное максимальное измерение емкости:
30mF
Абсолютное максимальное измерение напряжения переменного тока:
600В перем. тока
Абсолютное максимальное измерение переменного тока:
10A перем. тока
Абсолютное максимальное измерение температуры:
60мОм
Вес:
268гр
Высота:
45мм
Длина:
167мм
Измеряемые функции:
Переменный ток, Напряжение перем. тока, Емкость, Постоянный ток, Напряжение пост. тока, Частота, Сопротивление, Температура
Калибровка:
UKAS
Категория безопасности напряжения:
600 V, 1000V
Лучшая точность измерения сопротивления:
0.1 %
Лучшая точность измерения температуры:
0.1 %
Лучшая точность напряжения переменного тока:
0.1 %
Лучшая точность напряжения постоянного тока:
0.1 %
Лучшая точность переменного тока:
0.1 %
Лучшая точность постоянного тока:
0.1 %
Максимальная частота:
10МГц
Модель р:
760-2
Наилучшая точность измерения емкости:
0.1 %
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Размеры:
167 x 84 x 45мм
Тип дисплея:
Цифровой
Тип мультиметра:
Handheld
Ширина:
84мм
