0590 7603, Testo 760-3 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated, Мультиметр

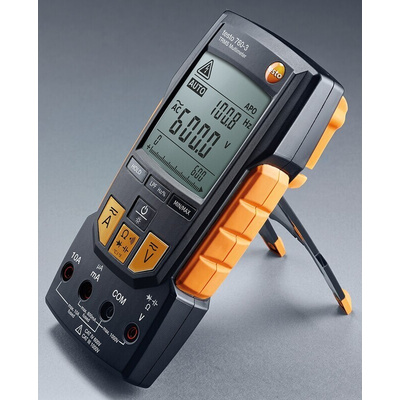

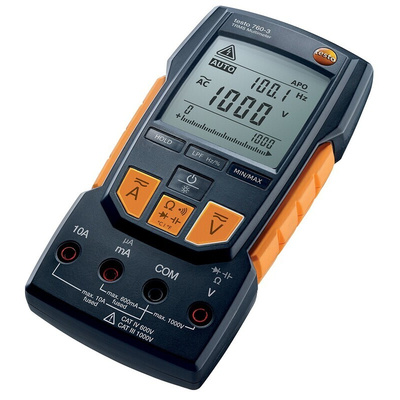

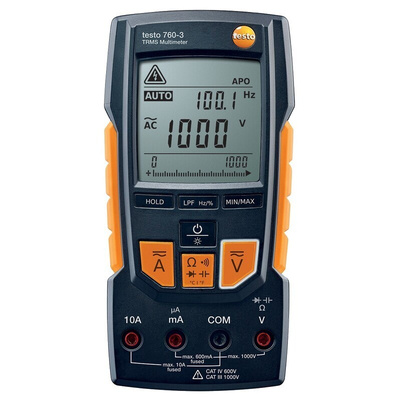

Testo 760-3 True RMS Digital Multimeter

The Testo 760-3 digital multimeter, one of three available in the range. The 760 series is designed for important electrical measuring tasks offering new function keys that replace the traditional dial which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys.
The Testo 760-3 has a larger current measurement range, the true root mean square measurement (TRMS) and a low pass filter. It also has a voltage range of up to 1000 V along with higher measuring ranges for frequency and capacitance.

Features and Benefits

• Testo 760-3 TRMS digital multimeter
• Easy, modern operation with function keys instead of a dial
• Measurement parameter detection and selection via the socket assignment
• Prevents incorrect settings
• Large, backlit display
• IP64 Rated
• 0.1% accuracy
• 10A ac, 1000 V ac
• Measurement Category: CAT IV 600 V, CAT III 1000 V

Testo 760 Digital Multimeter Options

• Testo 760-1 = RS Stock no: 905-5885 (Includes batteries and 1 set of measuring cables)
• Testo 760-2 = RS Stock no: 905-5888 (Includes batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples)
• Testo 760-3 = RS Stock no: 905-5882 (Includes batteries and 1 set of measuring cables)

Why would you buy it?

The Testo 760-3 is the perfect tool to handle all your electrical measurement needs. The exclusive auto test-setup feature detects your lead connection and prevents switching between volts and amps to prevent damage if the leads aren’t in the proper sockets

FAQ’s

Q: Can I use this to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.

Q: Is this multimeter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.

Q: Does this come with a calibration certificate?
A: RS offers calibrated options for this product and supplies all the appropriate certifications.

Standards

EN 61326-1

Approvals

TÜV, CSA & CE

Supplied with

Testo 760-3 TRMS multimeter, batteries and 1 set of measuring cables

Testo Handheld Digital Multimeter, 0.1mV to 1000V AC, -20°C to +500°C - 760 Series - 0590 7603

Use this multimeter from Testo to measure voltage, resistance and current in various electrical systems. The versatile device has wide measurement ranges for use in a variety of applications, from miniature devices to heavy-duty power systems. It has function keys rather than traditional dials for greater reliability and ease of operation. Thanks to automatic parameter detection, there's no need to worry about incorrect settings, as the function keys light up to show the right parameters.

Features & Benefits

• Large backlit display for ease of use in dark or dimly lit spaces
• IP64 (ingress protection) rating for resistance to dust and water splashes
• Light weight of 268g makes it easy to handle
• Wide operating temperature range of -10°C to +50°C for use in a variety of demanding environments
• Compact dimensions of 167 (length) x 84 (width) x 45mm (height) for ease of handheld use

Applications

• Home appliances
• Industrial maintenance
• Automotive industry
• Robotics and automation

What's the difference between a multimeter and a voltage tester?

A voltage tester is used exclusively to measure and monitor voltage. A multimeter like this one can be used for a variety of measurements, making it a versatile choice for use in highly controlled environments.
