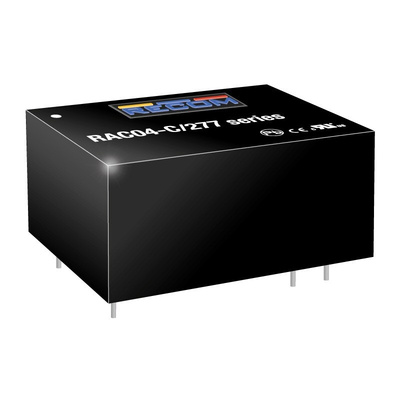

Recom Switching Power Supply, RAC04-15SC/277-E, 15V dc, 267mA, 4W, 1 Output, 80 → 305V ac Input Voltage, Источник питания

Recom 4W, PCB Mount, Encapsulated, Switch Mode Single and Dual AC-DC Converters - RAC04-C/277 Series

The RAC04-xxS_DC/277 series are fully certiἀed single and dual regulated AC/DC converters in an encapsulated PCB-mount package style with 3.75kVAC isolation and very low stand-by power consumption. The modules are suitable for worldwide use due to their wide input voltage range from 80VAC to 305VAC. Possible uses include home automation, standby applications and industrial controls.

50mW max. No Load Power Consumption
High Efἀciency up to 79%• Isolated Output 3.75kVAC / 1 min
SCP, OVP Protection
Wide Operating Temperature Range: -40°C to +80°C (only with sufἀx „-E“)
Universal Input 80-305VAC

RECOM Switching Power Supply, Encapsulated Type, 820μF Capacitive Load Maximum - RAC04-C/277 Series - RAC04-15SC/277-E

Good things come in small packages – look to this switching power supply from RECOM if you want proof. It has dimensions of 36.7 (L) x 27.2 (W) x 17.1mm (H), so calls for minimal board space. Give it voltages of 80 to 305V AC and you'll get a 15V DC output in return. This is ideal for personal computers or handheld electronics. To put your mind at ease and boost workplace safety, this power supply features short-circuit protection to prevent damage to your setup if a surge occurs.

• Wide operating temperature range between -40°C and +80°C to suit demanding applications
• Silicone potting is non-conductive to prevent electricity or noise from escaping the casing
• Comes in a tube of 12 units for convenience

Applications

• Computer production
• Manufacturing equipment
• Telecommunication networks
• Security systems

Why should I use a switching power supply over a linear regulator?

Encapsulated switching power supplies like this one are excellent all-rounders that aren't just energy-efficient but also heat-efficient. This means they cost less to run and power devices more effectively than linear regulators.

Datasheet
