Cole Hersee Key Switch

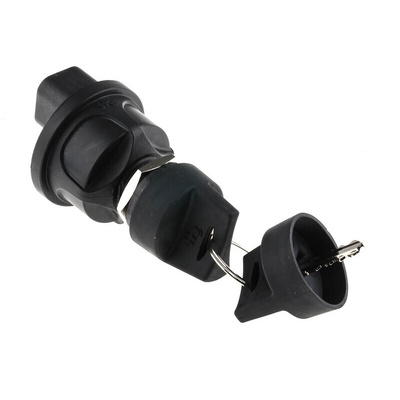

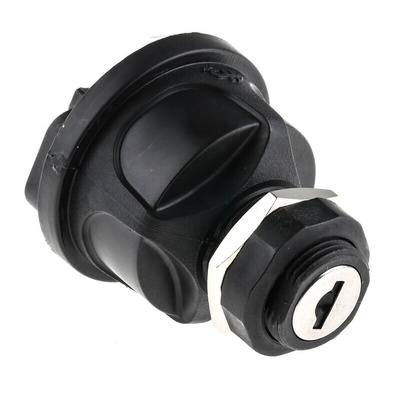

The Cole Hersee key switch is an innovative, ignition device. It is supplied with two booted keys. It has 4 positions with spring return from the start to the Ign/ACC position. The device uses O-rings and ultrasonic welds to seal the front and contact area (with connector fitted). The rear connector accepts the Deutsch DT06-6S connector or an equivalent compatible connector.

Features and Benefits

Contact current rating of 10A
Straight key
Screw terminal
Plastic case material
Bezel shape is round
Automotive applications
Depth behind panel is 49.52mm
Contact material is nickel plated brass
Voltage rating is 12VDC

Applications

Corridor
Restroom lighting controls

Certifications

IP67 rated for front and contact area
SAE J259
CULus
