Flex-14-15-20, Littelfuse Miniature Reed Switch, Герконовый переключатель

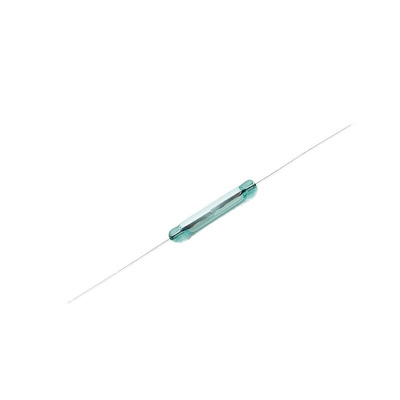

Flex-14 Axial Lead Reed Switches, Low Power

These sub-miniature, axial lead reed switches require zero operating power for contact closure. They are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. They are not effected by and do not affect their external environment. The soft leads are pliable and work well in applications requiring hand forming. They are also suited for switching micro-controller logic level loads.

The glass envelope on these reed switches measures 14 x 2.28 mm and it houses normally open contacts. It has a high insulation resistance and low contact resistance and they are also ATEX approved between 10-30 AT range.

Item 905-8871 has a sensitivity rating of AT 10-15.

Item 905-8875 has a sensitivity rating of AT 15-20.

Potential Applications

Reed relays
Security
Limit switching
Office equipment
Industrial control

Features

Subminiature, normally open switch
Longer leads are flexible for easy forming
Capable of switching up to 200 Vdc or 0.5A at up to 10 W
Operating temperature range: -40°C to +125°C

Standards

UL, ATEX Class I, Zone 2

Littelfuse

9058875 Datasheet
