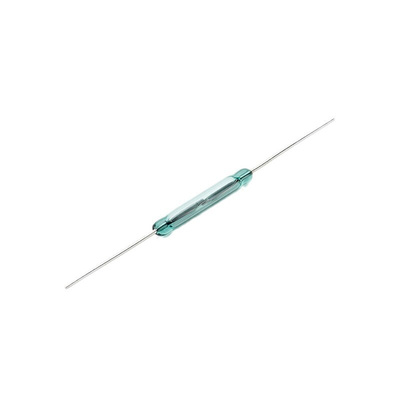

HA15-2-17-23, Littelfuse High Voltage Reed Switch, Герконовый переключатель

HA15-2 High-Voltage Reed Switches, Low Power

These subminiature, axial lead reed switches an of switch 265 V ac at 10 VA. They are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. They are not effected by and do not affect their external environment. They also do not require any operating power for contact closure.

The glass envelope on these reed switches measures 15.24 x 2.28 mm and it houses normally open contacts. It has a high insulation resistance and low contact resistance and they are also ATEX approved between 17-33 AT range.

Potential Applications

Reed relays
Security
Limit switching
Office equipment
Light inductive loads
European mains voltage

Features

Subminiature, normally open switch
Longer leads are flexible for easy forming
Capable of switching 100 to 265 V ac or 0.3A up to 20 VA (10 W for V dc)
Operating temperature range: -20°C to +125°C

Standards

UL, ATEX Class I, Zone 2
