04T-JWPS-VKKLE-DX-A1, JST, JWPS Female Connector Housing, 4mm Pitch, 4 Way, 2 Row, Корпус разъема

JST 4.0mm JWPS Waterproof IP67 Tab and Receptacle Housings

JWPS Series 4.0mm pitch IP67 waterproof wire-to-wire tab and receptacle housings ideal for use in applications where there is extreme moisture or submersion. The JWPS series 4.0mm IP67 tab housings feature a silicon rubber sealing ring on the mating side which offers protection against moisture, dirt and scratches and a solid rubber seal for the wire side sealing. Keying and colour coding on these JWPS waterproof tab and receptacle housing connectors help facilitate accurate mating and a contact locking feature eliminates contact back out and damage. In addition the JWPS series receptacle housings feature a positive locking squeeze to release mechanism for secure mating.
Typical applications for these JWPS Series 4mm waterproof connector housings include automotive, photovoltaics and underwater applications such as cameras.

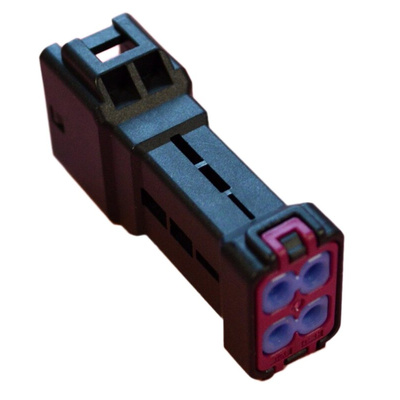

906-0149 is a 4 way tab housing with X keying
906-0133 is a 4 way receptacle housing with X keying

The crimp receptacle housings will also mate with the JWPS Series 4.0mm PCB headers

Standards

Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529)
