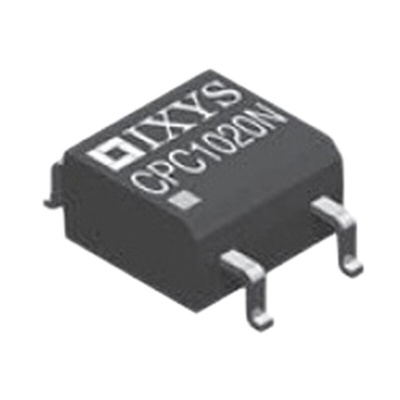

CPC1020N, IXYS 1.2 A dc SPNO Solid State Relay, DC, Surface Mount, MOSFET, Реле

9061029
Номер производителя: CPC1020NПроизводитель: IXYS
Цена за шт. (норма упаковки 5 шт)
879.00 руб. (С НДС) *
Количество 5+ 250+ 500+ 1000+ 2500+
Цена 879.00 руб. 849.00 руб. 816.00 руб. 789.00 руб. 759.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

1-Form-A 1500 Vrms SOP OptoMOS Relay, CPC

These single pole miniature solid state relays have normally open (1-Form-A) contacts and feature a 4-pin SOP package. They are able to provide 1500 Vrms of input to output isolation by taking advantage of optically coupled MOSFET technology.

The outputs have been constructed from efficient MOSFET switches and photovoltaic die and the well-known OptoMos architecture. The input is an efficient infrared LED which provides the optically coupled control.

By using a double-moulded vertical construction package, they are able to be one of the smallest relays available. This helps to provide a board space saving of at least 20% over other larger 4-pin SOP relays.

Potential Applications
Security: Passive infrared detectors (PIR), data signalling and sensor circuitry
Instrumentation: Multiplexers, data acquisition, electronic switching and I/O subsystems
Meters (watt-hour, water, gas)
Medical equipment: Patient/equipment isolation
Aerospace
Industrial controls
Sensor circuitry
Instrumentation
Multiplexers
Data acquisition

Features
1500Vrms input/output isolation
Only 0.5mA of LED current required to operate
Small 4-Pin SOP package
High reliability
Arc-free with no snubbing circuits
No EMI/RFI generation
Immune to radiated EM fields
Wave solderable

Standards

UL Recognized Component: File E76270
CSA Certified Component: Certificate 1172007
EN/IEC 60950-1 Certified Component: Certificate B 13 12 82667 003

Ixys Solid State Relays, PCB Mount

Техническая спецификация
pdfCPC1020N Datasheet
Вид упаковки:
SOP
Встречающиеся стандарты:
CSA, EN/IEC 60950-1, Certificate B 13 12 82667 003, UL File E76270
Высота:
2.12мм
Глубина:
3.81мм
Диапазон рабочих температур:
-40 → +85°C
Длина:
4.09мм
Ёмкость:
33пФ
Количество полюсов:
1
Конфигурация контактов:
SPNO
Максимальное время включения:
3 мс
Максимальный ток нагрузки:
1.2 A пост. тока
Размеры:
4.089 x 3.81 x 2.1203мм
Специальные функции:
Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable
Тип клеммы:
PCB Pin
Тип коммутации:
Постоянный ток
Тип монтажа:
Поверхностное крепление
Тип реле:
OptoMOS
Ток утечки в выключенном состоянии:
1 мкА
Устройства вывода:
MOSFET
