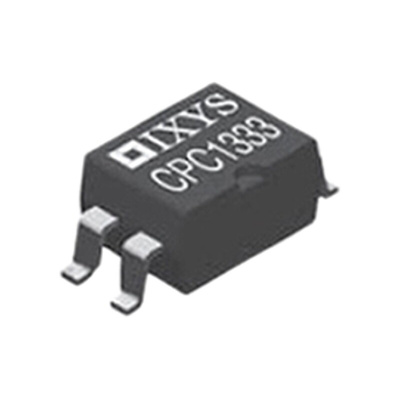

CPC1333GR, IXYS 130 mA rms/mA dc SP-NC Solid State Relay, DC, Surface Mount, MOSFET, Реле

9061054
Номер производителя: CPC1333GRПроизводитель: IXYS
Цена за шт. (норма упаковки 5 шт)
489.00 руб. (С НДС) *
Количество 5+ 250+ 500+ 1000+ 2500+
Цена 489.00 руб. 471.00 руб. 453.00 руб. 438.00 руб. 423.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

GaAlAS Infrared LED 4-Pin OptoMOS Relay, CPC

These single pole miniature solid state relays have either a normally open (1-Form-A) or a normally closed (1-Form-B) contact. They have an enhanced input output isolation barrier rated to 5000 Vrms.
Various Blocking voltages are available making these units suitable for a wide variety of applications.

The outputs have been constructed from efficient MOSFET switches and the well-known OptoMos architecture. The input is an efficient GaAlAS infrared LED which controls the optically coupled output.

Potential Applications
Instrumentation
Multiplexers
Data acquisition
Electronic switching
I/O subsystems
Meters (watt-hour, water, gas)
Medical equipment: patient/equipment isolation
Security systems
Aerospace
Industrial controls

Features
GaAlAS LED’s have a wide range of wavelengths
5000 Vrms input/output isolation
Low drive power requirement
Small 4-Pin SOP package
High reliability
Arc-free with no snubbing circuits
No EMI/RFI generation
Wave solderable, machine insert-able

Standards

UL Recognized Component: File E76270
CSA Certified Component: Certificate 1172007
EN/IEC 60950-1 Certified Component: Certificate B 10 05 49410 006

Ixys Solid State Relays, PCB Mount

Техническая спецификация
pdfCPC1333GR Datasheet
Вид упаковки:
Small - 4 Pin
Встречающиеся стандарты:
CSA, IEC 60950-1
Высота:
3.3мм
Глубина:
4.57мм
Диапазон рабочих температур:
-40 → +85°C
Длина:
6.35мм
Ёмкость:
6пФ
Количество полюсов:
1
Конфигурация контактов:
SP-NC
Максимальное время включения:
2 мс
Максимальный ток нагрузки:
130 мА rms/мА пост. тока
Размеры:
6.35 x 4.572 x 3.3мм
Специальные функции:
Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
Тип клеммы:
PCB Pin
Тип коммутации:
Постоянный ток
Тип монтажа:
Поверхностное крепление
Тип реле:
OptoMOS
Ток утечки в выключенном состоянии:
1 мкА
Устройства вывода:
MOSFET
