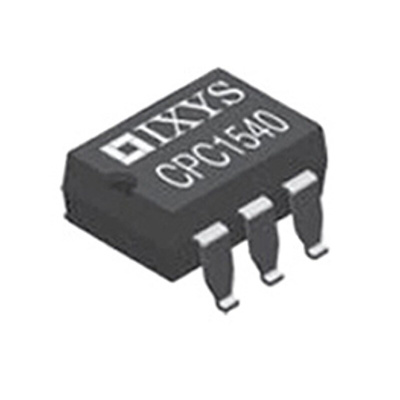

CPC1540GS, IXYS 120 mA rms/mA dc, 250 mA dc SPNO Solid State Relay, AC/DC, Surface Mount, MOSFET, 350 V Maximum Load, Реле

9061063
Номер производителя: CPC1540GSПроизводитель: IXYS
Цена за шт. (норма упаковки 5 шт)
615.00 руб. (С НДС) *
Количество 5+
Цена 615.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

1-Form-A OptoMOS Relay, Integrated Current Limit, CPC

These single pole solid state relays have normally open (1-Form-A) contacts and have an integrated current limit feature. They can be used to replace electromechanical relays while enhancing the robustness of wireline-interface applications. Ideal for the international hook switch telephone market.

They are built using a GaAlAs LED for actuation with MOSFET switches on the outputs and an integrated monolithic die for switch control. The die has a photodiode array, switch control with active current limiting circuitry and thermal supervision. They can be used in both Ac and DC applications with various blocking voltage options.

Potential Applications:
Telephony hook switch
VoIP gateways
IP-PBXs
Satellite and cable set-top boxes
V.92 (and other standard) modems
Fax machines
Voicemail systems
Embedded modems for POS terminals
Automated banking
Remote metering
Vending machines
Security and surveillance
Instrumentation
Medical equipment: Patient/equipment isolation
Aerospace
Industrial controls

Features
Integrated active current-limit protection
Thermal supervision
Guaranteed turn-on: 2mA input control current
3750 Vrms input/output isolation
Small surface mount package
Low drive power requirements (TTL/CMOS compatible)
Arc-free with no snubbing circuits
No EMI/RFI generation

Standards

UL Certified Component: File E76270
CSA Certified Component: Certificate 1172007
EN/IEC 60950-1 Certified Component: TUV Certificate: B 10 05 49410 006

Ixys Solid State Relays, PCB Mount

Техническая спецификация
pdfCPC1540GS Datasheet
Вид упаковки:
Small - 6 Pin
Встречающиеся стандарты:
Certificate TUV B 10 05 49410 006, CSA, EN/IEC, UL File E76270
Высота:
3.3мм
Глубина:
6.35мм
Диапазон нагрузочного напряжения:
Максимум 350В
Диапазон рабочих температур:
-40 → +85°C
Длина:
8.38мм
Ёмкость:
14пФ
Количество полюсов:
1
Конфигурация контактов:
SPNO
Максимальное время включения:
2 мс
Максимальное напряжение нагрузки:
350 В
Максимальный ток нагрузки:
120 мА rms/мА пост. тока, 250 мА пост. тока
Размеры:
8.382 x 6.35 x 3.302мм
Специальные функции:
Arc-Free With No Snubbing Circuits, Integrated Active Current-Limit Protection, Low Power Drive Requirement, Machine Insertable, No EMI/RFI Generation, Thermal Shut-Down, Wave Solderable
Тип клеммы:
PCB Pin
Тип коммутации:
Перем./пост. ток
Тип монтажа:
Поверхностное крепление
Тип реле:
OptoMOS
Ток утечки в выключенном состоянии:
1 мкА
Устройства вывода:
MOSFET
