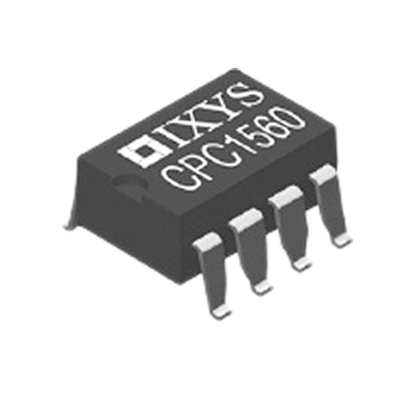

CPC1560GS, IXYS Solid State Relay, 0.3 A Load, Surface Mount, 10 V Load, Реле

1-Form-A Fast Turn-On with Integrated Current Limit, CPC

These single pole solid state relays have normally open (1-Form-A) contacts and have an integrated current limit feature. They have an optically isolated MOSFET switch that provides fast turn-on of loads up to 600 mArms (dc only) or 300 mArms (ac/dc circuits). They also provide 3750 Vrms of input/output isolation.

Fast turn-on is achieved by using an external charge storage capacitor. The device charges the capacitor (through bootstrap diodes) from the load voltage. This eliminates the need for an additional power supply.

Thermal shutdown improves survivability in harsh environments making them ideal for use in a wide variety of applications. They are also compact in size making them ideal for use on circuit boards where space is at a premium.

Potential Applications
Instrumentation: automatic tuning/balancing, analogue multiplex
Peripherals: automatic tuning/balancing, transducer driver
Security
Medical equipment

Features
Fast turn-on
Built-in active current limit protection
Thermal shutdown
Linear AC or DC operation
Low power consumption
Clean, bounce-free switching
High surge capability
Low power drive requirements

Standards

UL 508 Approved Component: File E69938

Ixys Solid State Relays, PCB Mount

CPC1560GS Datasheet
