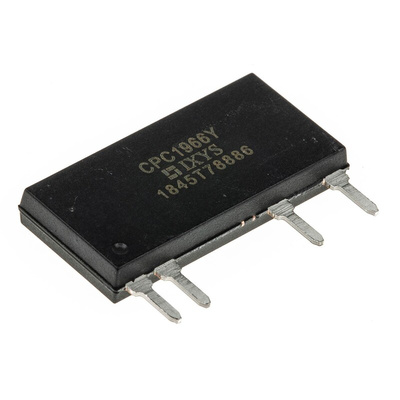

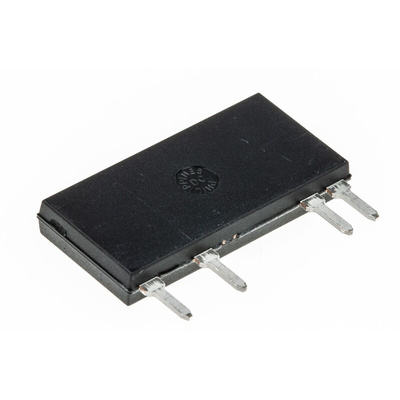

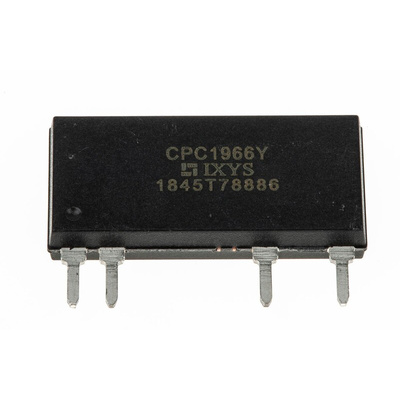

CPC1966Y, IXYS Solid State Relay, 3 A rms Load, PCB Mount, 240 V ac Load, 1.4 V Control, Реле

Dual Power SCR Output, AC power Switch, CPC

These AC power switches have been designed to provide an alternative to Optocoupler and Triac circuits. These solid state switches can do this by using optical coupling with dual power SCR outputs. Tightly controlled zero cross circuitry also ensures switching of AC loads without the generation of transients.

Optically coupled input and output circuits provide 3750 Vrms (5000 Vrms for CPC966B) of isolation. This also includes noise immunity between control and load circuits. This makes them ideally suited to applications where electromagnetic interference could disrupt the operation of electromechanical relays. Various blocking voltages and body styles are available.

Potential Applications:
Programmable control
Process control
Power control panels
Remote switching
Gas pump electronics
Contactors
Large relays
Solenoids
Motors
Heaters

Features
5mA sensitivity
Zero-crossing detection
DC control, AC output
Optically isolated
TTL and CMOS compatible
Low EMI and RFI generation
High noise immunity
Machine insert-able, wave solderable
Flammability classification rating of V-0

Ixys Solid State Relays, PCB Mount

CPC1966Y Datasheet
