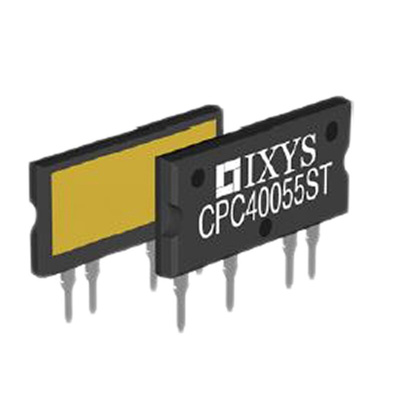

CPC40055ST, IXYS Solid State Relay, 40 A rms Load, PCB Mount, 280 V rms ac Control, Реле

Dual Power SCR Output, AC power Switch, SuperSip, CPC

These AC power solid state switches use dual power SCR outputs. Tightly controlled zero cross circuitry also ensures low noise switching of AC loads by minimizing the generation of transients. Optically coupled input and output circuits provide 2500 Vrms of isolation. This also includes noise immunity between control and load circuits. This makes them ideally suited to applications where electromagnetic interference could disrupt the operation of electromechanical relays.

The unique SuperSIP package allows these units to achieve the highest load current currently available in a similar sized package. This package is manufactured with the silicon chip being soft soldered onto the Direct Copper Bond (DCB) substrate rather than the traditional copper lead frame. These DCB ceramics are what makes it possible to provide 2500 Vrms isolation but still offer a very low junction-to-case thermal resistance from only 0.35°C per watt.

Potential Applications:
Lighting
Programmable control
Process control
Power control Panels
Remote switching
Petrol pump electronics
Contactors
Large relays
Solenoids
Motors
Heaters

Features
Zero-cross switching
2500Vrms isolation, input to output
DC voltage control, AC output
Optically isolated
Low EMI and RFI generation
High noise immunity
Machine insertable, wave solderable

Standards

UL 508 Recognized Component: File E69938
