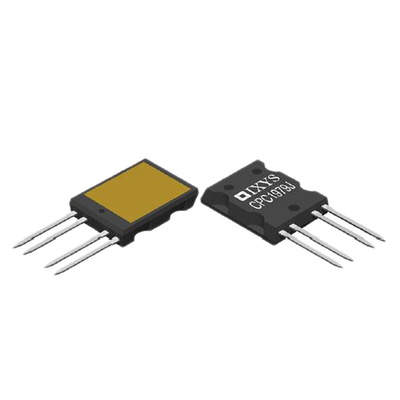

CPC1979J, IXYS 14.5 A rms/A dc SPNO Solid State Relay, DC, PCB Mount, MOSFET, Реле

9061105
Номер производителя: CPC1979JПроизводитель: IXYS
Цена за шт.
4476.00 руб. (С НДС) *
Количество 25+ 50+ 100+ 250+
Цена 4314.00 руб. 4158.00 руб. 4002.00 руб. 3876.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

1-Form-A OptoMOS Power Relay, CPC

These single pole solid state relays have normally open (1-Form-A) contacts. They feature a unique ISOPLUS-264 package giving the highest possible load current and power ratings. They are able to provide 2500 Vrms of input to output isolation by utilising optically coupled MOSFET technology.

The optically coupled outputs use the well-known OptoMOS architecture and are controlled by a highly efficient infrared LED. With a low on-resistance and a high load current rating these units are suitable for a wide variety of applications.

The unique ISOPLUS-264 package is manufactured with the silicon chip being soft soldered onto the Direct Copper Bond (DCB) substrate rather than the traditional copper lead frame. These DCB ceramics are what makes it possible to provide 2500 Vrms isolation but still offer a very low junction-to-case thermal resistance from only 0.3C per watt.

Potential Applications:
Industrial controls/motor control
Robotics
Medical equipment: Patient/equipment isolation
Instrumentation: Multiplexers, data acquisition, electronic switching and I/O subsystems
Energy meters
Transportation equipment
Aerospace/defence

Features
2.25 Arms load current with 5°C per watt heat sink
Low on-resistance
Selection of blocking voltages
2500 Vrms input/output isolation
Low thermal resistance
Isolated, low thermal impedance ceramic pad for heat sink applications
Low drive power requirements
Arc-free with no snubbing circuits
No EMI/RFI generation
Machine insertable, wave solderable

Standards

UL 508 Certified Component: File E69938

Ixys Solid State Relays, PCB Mount

Техническая спецификация
pdfCPC1979J Datasheet
Вид упаковки:
ISO Plus-264
Встречающиеся стандарты:
UL 508 Approved File No E69938
Высота:
26.16мм
Глубина:
5.03мм
Диапазон рабочих температур:
-40 → +85°C
Длина:
19.91мм
Ёмкость:
700пФ
Количество полюсов:
1
Конфигурация контактов:
SPNO
Максимальное время включения:
25 мс
Максимальный ток нагрузки:
14.5 A rms/A пост. тока
Размеры:
19.914 x 5.029 x 26.162мм
Специальные функции:
Arc-Free With No Snubbing Circuits, High Reliability, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable
Тип клеммы:
PCB Pin
Тип коммутации:
Постоянный ток
Тип монтажа:
Крепление на печатной плате
Тип реле:
Силовое реле
Ток утечки в выключенном состоянии:
1 мкА
Устройства вывода:
MOSFET
