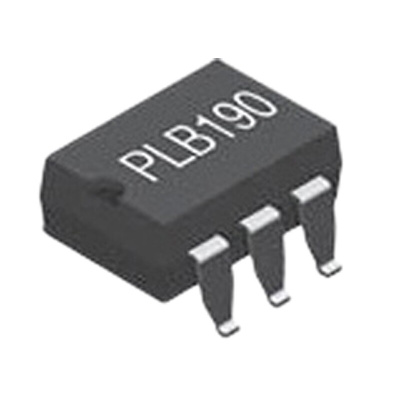

PLB190S, IXYS Solid State Relay, 130 mA Load, Surface Mount, Реле

1-Form-B Enhanced Isolation OptoMOS Relay, PLA

The PLA171 uses optically coupled MOSFET technology to offer a high 5000 Vrms input-to-output isolation. It features a unique design with 7mm of space between the input and output pins. It is single pole with normally closed (1-Form-B) contacts.

These units use the well-known OptoMOS architecture where the optically coupled outputs are controlled by highly efficient GaAlAs infrared LED’s.

Potential Applications
Telecommunications: Telecom switching, tip/ring circuits, modem switching (laptop, notebook, pocket size), dial pulsing
Instrumentation: Multiplexers, data acquisition, electronic switching, I/O subsystems
Meters (watt-hour, water, gas)
Medical equipment: Patient/equipment isolation
Security systems
Aerospace
Industrial controls

Features
5000 Vrms input/output isolation
Low drive power requirements (TTL/CMOS Compatible)
No moving parts
High reliability
Arc-free with no snubbing circuits
FCC compatible
VDE compatible
No EMI/RFI generation
Small 6-pin package
Machine insertable, wave solderable
Surface mount tape & reel version available

Standards

UL, CSA, EN/IEC

Ixys Solid State Relays, PCB Mount

PLB190S Datasheet
