Keysight Technologies U1241C Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

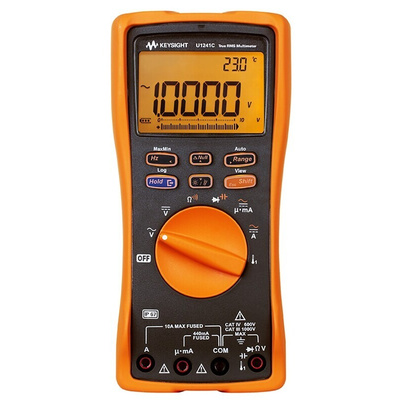

Keysight U1241C Digital Multimeters

Keysight U1241C Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1241C digital multimeter is also designed to increase technicians or industrial test engineers production with the longer lasting battery life. The battery life will last up to 400 hours allowing you to work for longer periods of time without having to stop and battery change.

The ergonomic shaped handheld digital multimeter has a large display and backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. Another feature to help you with poorly lit environments is that this digital multimeter has a built-in flashlight.

The U1241C multimeter fits comfortable in your palm allowing you it single handedly illuminate test area with its easily activated built in LED flashlight. This digital multimeter also has an IP67 certified protection for water and dust protection with the durability to withstand drops up to 10 feet to suit harsh working environments.

For improved safety the U1241C series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts and will also detect glitches swiftly with the built in switch/relay counter.

This battery powered handheld digital multimeter features true rms readings with a 10,000 count, 4 digit display and analogue bar graph results without the complications.

Features & Benefits

• 10,000 - count dual display
• Up to 0.09% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 400 hours
• Auto & Manual data logging - 2000 readings
• Certified to IP 67 for water and dust protection
• Tested to withstand a 3m (10ft.) drop
• Easy connectivity to PC with optional IR-USB cable or Bluetooth
• Frequency counter
• Built in Low pass filter for accurate VFD troubleshooting

The U1241C series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Test leads (red and black), Infrared IR-to-USB cable, 1.5 V AAA alkaline batteries (x4), quick start guide

Keysight Technologies Multimeter, 400h Battery Life, 100mV to 1000V AC/DC Voltage Measurement Range - U1240 Series - U1241C

Looking for a reliable way to monitor your electronic devices? Choose this multimeter from Keysight Technologies. It's a versatile instrument that can measure parameters such as AC and DC voltages, resistance and frequency. This unit uses four 1.5V AAA batteries, making it a portable option. It has a long battery life of up to 400 hours for long-lasting use. Thanks to its backlit display, you can clearly see the screen in low-light environments.

Features & Benefits

• Wide operating temperature range between -20°C and +55°C for use in harsh conditions
• Compact dimensions of 198 (height) x 96 (width) x 57mm (depth) for ease of handling
• IP67 rating means it's protected against dust and submersion in 1m of water for up to 30 minutes
• Compatible with Keysight Handheld Meter Logger software for ease of data analysis

Applications

• Automotive industry
• Construction sites
• Telecommunications

What's the voltage measurement range of this multimeter?

This multimeter has a wide voltage measurement range of 100mV to 1000V AC/DC, making it suitable for use in both low and high-power applications.
