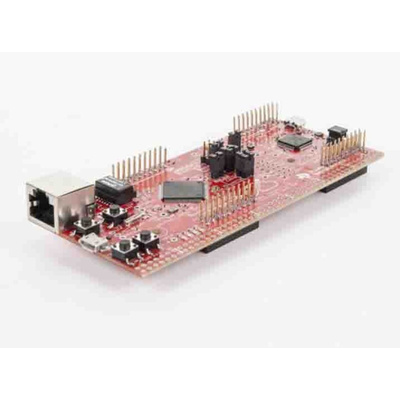

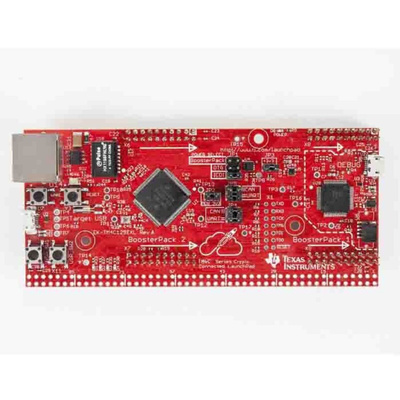

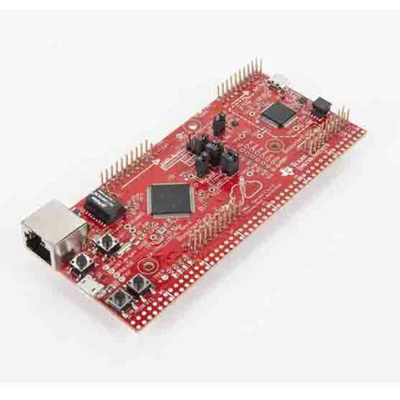

Texas Instruments EK-TM4C129EXL

TM4C129E Microcontroller Crypto Connected LaunchPad Evaluation Kit

The TM4C Series TM4C129E Microcontroller Crypto-Connected LaunchPad™ Evaluation Board (EK-TM4C129EXL) is an evaluation platform for ARM® Cortex®-M4F-based microcontrollers. The Crypto-Connected LaunchPad design highlights the High performance TM4C129ENCPDT microcontroller. Peripherals feature connectivity, communication and real-time control with crypto-acceleration hardware, 10/100 Ethernet MAC and PHY, USB 2.0, hibernation module, motion control Pulse-Width-Modulation (PWM) and many more serial communication interfaces.
The LaunchPad board features two user switches, four user LEDs, dedicated reset and wake switches, a breadboard expansion option and two independent BoosterPack XL expansion connectors.
The pre-programmed out of the box demo on the Crypto Connected LaunchPad also enables remote monitoring and control of the evaluation board securely from an internet browser anywhere in the world.

High performance TM4C129ENCPDT Microcontroller
On-board, In-Circuit Debug Interface (ICDI)
Secured cloud connection out-of-box demonstration with TI RTOS, WolfSSL and Exosite
Intensive SW support with Tivaware & TI RTOS and multiple tool chain support: CCS, IAR, Keil, IAR, Mentor & GCC

Kit Contents

TM4C Crypto Connected LaunchPad evaluation board (EK-TM4C129EXL PCBA with MCU)
90 degree 49x2 breadboard connector
Retractable Ethernet cable
USB debug cable
Read Me First instructions
TivaWare for C Series Software and an out-of-the-box demo are available to download

Texas Instruments’ Tiva™ C Series MCUs offer the industry’s most popular ARM Cortex-M4 core with scalable memory and package options, unparalleled connectivity peripherals and advanced analogue integration.
