STMicroelectronics STM32 Nucleo-64 MCU Development Board NUCLEO-F446RE

NUCLEO-F446RE Nucleo-64 Development Board

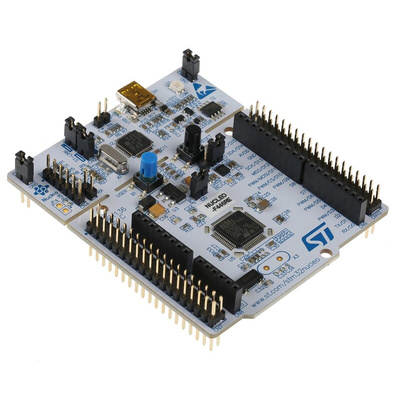

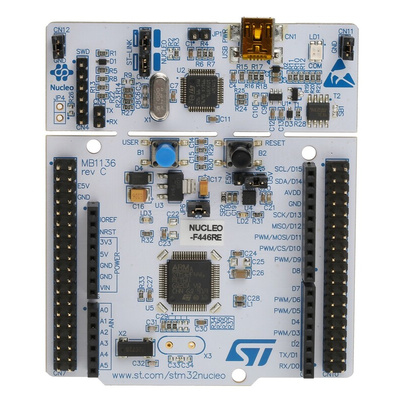

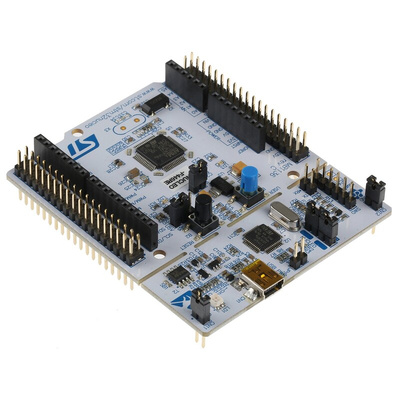

From STMicroelectronics, the NUCLEO-F446RE development board features an STM32F446RE Arm Cortex M4 microcontroller in a LQFP64 package. With unlimited extension opportunities, this board enables you to easily develop, build and evaluate prototypes. The microcontroller is housed in a relatively small package, giving you more development flexibility than larger boards.

Integrated Arduino™ Uno V3 connectivity support and ST morpho headers enable you utilise the STM32 development platform to expand the functionality of your board by connecting to specialised shields.

The NUCLEO-F446RE has an ST-LINK/V2-1 debugger and programmer which means that you will not require a separate probe. Supplied with HAL Library software (and other packaged software examples), you can begin prototyping immediately. You will also have direct access to ARM mbed online resources. A range of IDEs (Integrated Development Environments) such as GCC-basd IDEs, IAR and Keil support this development board.

What's on board?

• STM32F446RET6 180MHz Cortex-M4F core microcontroller with 512 kB Flash memory and 128 kB SRAM
• Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory
• 8 to 14-bit parallel camera interface up to 54 MB/s
• Arduino Uno v3 connectivity
• ST morpho extension pin headers for access to all I/Os
• ST-LINK/V2-1 debugger/programmer with SWD connector
• Up to 20 serial communication interfaces: USART, IrDA, I²C, SPI, SAI, CAN, USB, I²S, S/PDIF-Rx, SDIO, HDMI-CEC
• Power supply options; T-LINK USB VBUS or external sources
• USB OTG or FS Device with micro-AB connector
• True random number generator
• CRC calculation unit
• RTC with subsecond accuracy and hardware calendar
• 96-bit unique ID
• 3 x LEDs: power, USB communication, user LED
• 2 x pushbuttons (user and reset)
• 32.768 KHz crystal oscillator
• ARM mbed Enabled (mbed.org)

STM32F4 Series 32-Bit ARM Cortex-M4 Microcontrollers, STMicroelectronics

The ARM Cortex-M4 based STM32 F4 series of high-performance MCUs with DSP and FPU instructions is an extension of the industry-leading STM32 portfolio towards even higher performance. Up to 180 MHz operating frequency.

Up to 2x USB 2.0 OTG FS/HS
SDIO (Secure Digital Input Output)
USART, SPI, I²C
I²S (Inter-IC Sound) + Audio PLL
16 and 32 Bit Timers
Up to 3x 12-Bit ADC
Low Voltage 1.7 V to 3.6 V

NUCLEO-xxxxRx, STM32 Nucleo-64 Boards Data Brief

NUCLEO-XXXXRX, STM32 Nucleo-64 Boards
