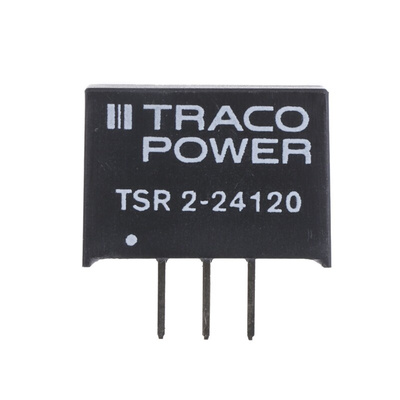

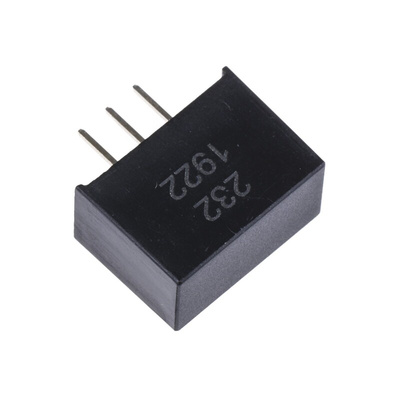

TSR 2-24120, TRACOPOWER Switching Regulator, Through Hole, 12V dc Output Voltage, 15 → 36V dc Input Voltage, 2A Output, Импульсные стабилизаторы

Traco Power Switching Regulator, 5ms Startup Time, Continuous Short-Circuit Protection - TSR 2 Series - TSR 2-24120

Need a safe power distribution solution for your PCB-linked appliances? Go for this switching regulator from Traco Power. It delivers a stable 12V DC output from inputs varying between 15 and 36V DC, so provides components such as battery chargers with the right supply. As the unit has built-in capacitors to remove ripple from the incoming signal, you can rest assured of smooth and noiseless transmission. What's more, this regulator runs at 95% efficiency, giving you the benefit of maximum productivity with low power loss.

Features & Benefits

• 2W power rating makes it suitable for light-duty applications
• Continuous short-circuit protection with automatic recovery prevents downtime for increased productivity
• Performs reliably in a temperature range between -40°C and +85°C, making it fit for demanding conditions
• Pin-compatible with LMxx linear regulators for a quick and easy upgrade

Applications

• Industrial electronics
• Medical equipment
• Aerospace engineering

How durable is the switching regulator?

This product has a mean time between failures of over 13 million hours, meaning you can count on it to deliver long-term service.
