Keysight Technologies U1282A Handheld Digital Multimeter, True RMS - UKAS Calibrated, Мультиметр

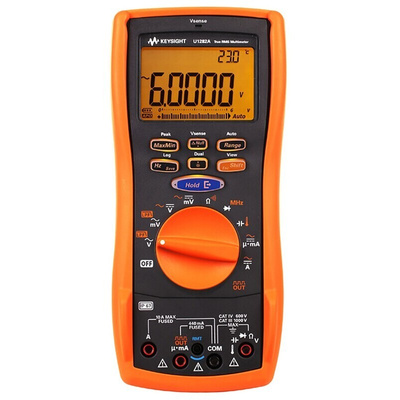

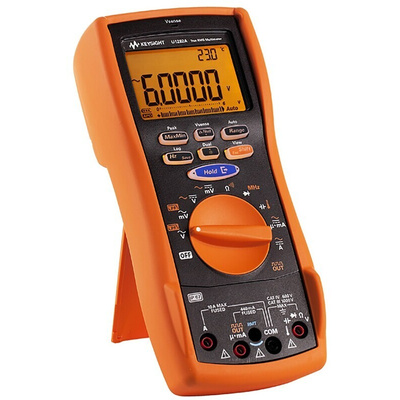

Keysight U1282A Digital Multimeter

Keysight U1282A Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1282A digital multimeter is also designed to increase your production with the longer lasting battery life. The battery life will last up to 800 hours allowing you to work for longer periods of time without having to stop and battery change. The ergonomic shaped handheld digital multimeter has a large display and backlit keypad that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter also has an IP67 certified protection, water and dust resistant and will withstand harsh environments and can also be used in high altitude locations. For improved safety the U1282A series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts. This battery powered handheld digital multimeter features true rms readings with a 60,000 count, 4 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits

• 60,000-count dual display
• Up to 0.025% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 800 hours
• Manual data logging up to 100 readings
• Auto/event data logging up to 10,000 readings
• Certified to IP 67 for water and dust protection
• Tested to withstand a 3m (10ft.) drop
• Square wave output for generating pulse width modulation (PWM) signal
• Frequency counter
• Built in Low pass filter for accurate VFD troubleshooting

The U1282A series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Non-contact voltage detection with Vsense

The Vsense, a unique feature found in the U1282A Series performs non-contact voltage detection. It delivers more safety while making measurements in dangerous working environments by avoiding any contact with hot or live wires, suspected AC voltage presence or simply and act of safety precaution before initiating a task. Upon detection of voltage, it produces a unique combination of beeping alert and blinking LED light to make measurements more efficiently – especially in a dark or noisy environment.

Programmable

Keysight U1282A Digital Multimeter comes with programmability capability that allows avid programmer to create computer programs to control the handheld digital multimeter through PC or smart devices.

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Test leads (red and black), Infrared IR-to-USB cable, 1.5 V AAA alkaline batteries (x4), quick start guide

Keysight Technologies Multimeter, 60Ω to 600MΩ Resistance Measurement Range, 701g Weight - U1280 Series - U1282A

This handheld multimeter from Keysight Technologies brings laser-like accuracy to your fingertips. You can use it to measure electrical properties such as resistance, current and voltage. The component's 60,000-count dual display allows you to monitor multiple measurements simultaneously with pinpoint precision. An 800-hour battery life means you can focus on your work for long periods of time without the need for a charge. Logging data is a cinch as you can simply push down on the 'Hold & Export' button. For reduced risk of electric shock, the unit features Vsense non-contact voltage detection.

Features & Benefits

• Compact dimensions of 218 (H) x 96 (W) x 59mm (D) to fit comfortably in your hands
• Wide operating temperature range between -20°C and +55°C for use in demanding conditions
• Overvoltage protection to prevent electrical damage

Applications

• Renewable energy systems
• HVAC equipment
• Automotive repairs

Is this device waterproof?

Yes. It has an IP67 rating, meaning it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes.

What's included with this multimeter?

It's supplied with a test lead set, an IR-to-USB cable, a quick start guide, four 1.5V AA batteries and a certificate of calibration, so you have everything you need to get started.

Keysight

U1280 Series Handheld Digital Multimeters
