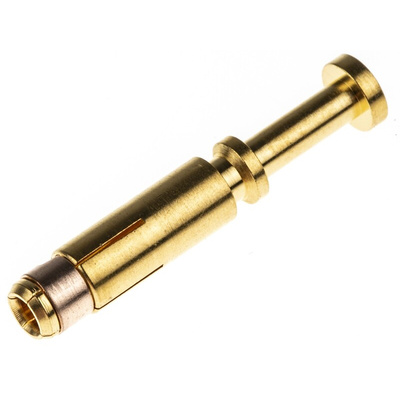

1621576, Phoenix Contact Female Crimp Circular Connector Contact, Contact Size 2mm, Wire Size 0.25 → 1 mm², Контакты разъема

Phoenix Contact M23 Crimp Contacts

The SF range of circular connector contacts from Phoenix contact are designed to be used with the M23 circular connectors. The connector contact is the component within a connector that carries the electrical signal across a connection.

Features and Benefits

• Male and Female available
• Crimp range of 0.8mm to 2mm
• Low contact resistance
• High tensile strength of connection
• Crimp termination method
• Temperature and vibration resistant assembly

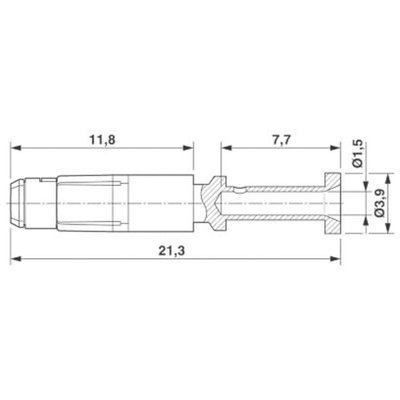

Crimp contact, turned, contact diameter: 2 mm, crimp range: 0.25 mm² ... 1 mm²

Datasheet 1621576
