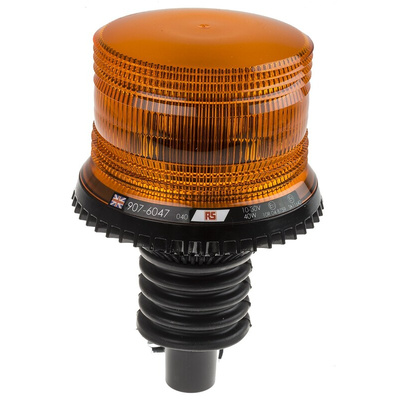

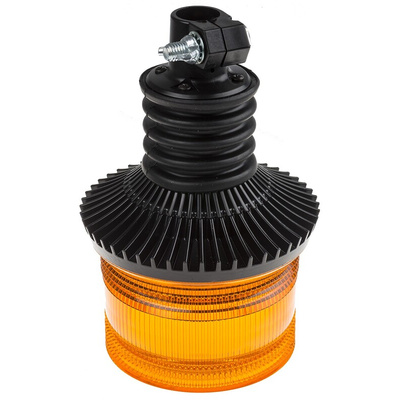

RS PRO Amber Flashing Beacon, 10 → 30 V dc, Flexi DIN Mount, LED Bulb, IP56, Маячок

RS LED Beacons with Fresnel Lens

These LED beacons feature a robust polycarbonate fresnel lens and 12 x 3W high performance LEDs. The fresnel lens captures more oblique light from the LEDs thus allowing the light to be visible over greater distances.

EMC R10 approved
4 ECE R65 approved flash patterns (single, double, triple and quad) for stock no. 907-6047
Double flash only for stock no. 907-6056
120 Flashes per minute with memory function to remember last selected flash pattern
3-Point models can be linked for synchronised flash
Heavy duty heat sink and amber polycarbonate lens
Sealed for life against moisture and dust
Conformal coated PCB with reverse polarity protection

Note

DIN or Flexi DIN beacons can be mounted using DIN mounting stems and brackets such as:

• Stock No. 1999755 – RS PRO DIN Mounting Stem (Socket)


• Stock No. 1999756 – RS PRO DIN Mounting Stem (Bracket)


• Stock No. 1999754 – RS PRO DIN Mounting Stem (Bracket)

RS Pro Datasheet

Instruction Sheet
