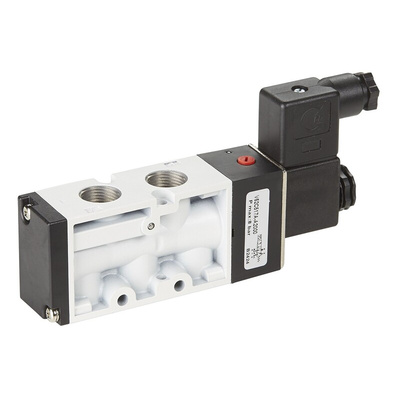

RS PRO Pneumatic Solenoid Valve - Solenoid/Air, G 1/8, V50 Series, 24 V DC

This solenoid valve from RS PRO allows you to control your pneumatic circuits via an electrical connection. It's easy to set up and install and you can mount it either inline or as in a manifold configuration, giving you flexibility when building your pneumatic system.
You can use this valve with both lubricated and non-lubricated air or gas, so it will be just as effective whether or not your pneumatic systems have been oiled. It's also energy-efficient, saving you money and reducing your environmental impact.
This robust valve has a soft-seal spool design, so it forms a tight seal that prevents leakage. And, if you need to take control of the airflow, you can use a simple push or turn of the lock to manually override the valve.

Features and Benefits

• Solenoid/air actuation type
• Die-cast aluminium body material
• 44232 port configuration
• G 1/8 connection port thread
• Maximum flow rate of 480 L/min
• Maximum operating pressure of 8 bar
• Minimum operating pressure of 2 bar
• Operating temperature range of -5°C to +50°C
• Inline and manifold mounting styles
• Five ports
• Two positions
• Solenoid power consumption of 2.9 W
• Solenoid voltage of 24 V DC
• Compact, robust design
• High-flow inline valves
• Low-power, energy-efficient solenoid
