RS PRO Pneumatic Solenoid Valve - Solenoid/Solenoid G 1/4 V51 Series 24V dc, Клапан

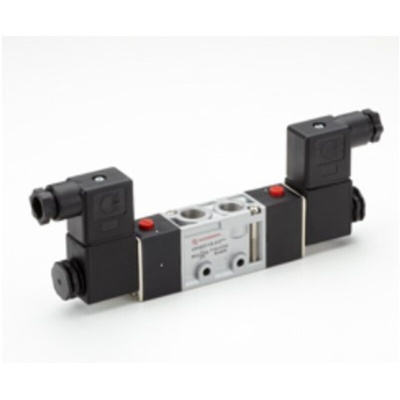

RS PRO Pneumatic Solenoid Valve - Solenoid/Solenoid, G 1/4, V51 Series, 24 V DC

Use this RS PRO solenoid valve to regulate your pneumatic circuits using an electrical connection. You can mount it either as a manifold configuration or inline, so it's a versatile option for setting up your pneumatic system.The valve is compatible with both lubricated and non-lubricated gas or air, meaning it's safe to use whether your pneumatic system has been oiled or not. It's also an energy-efficient option that saves you money and reduces your environmental impact.Thanks to the valve's soft-seal spool design, it creates a tight seal to prevent leaks. You can simply push or turn the lock to manually override the valve, making it easy to control.

Features and Benefits

• Solenoid/air actuation type


• Die-cast aluminium body material


• 44232 port configuration


• G 1/4 connection port thread


• Maximum flow rate of 1020 L/min


• Maximum operating pressure of 8 bar


• Minimum operating pressure of 2 bar


• Operating temperature range of -5°C to +50°C


• Inline and manifold mounting styles


• Five ports


• Two positions


• Solenoid power consumption of 2 W


• Solenoid voltage of 24 V DC


• Compact, robust design


• High-flow inline valves


• Low-power, energy-efficient solenoid

Datasheet
