RS PRO Pneumatic Solenoid Valve - Solenoid/Air G 1/8 V50 Series 24V dc, Клапан

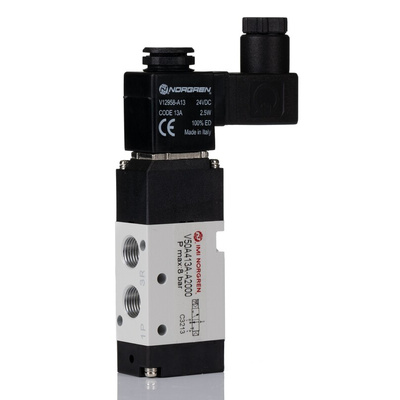

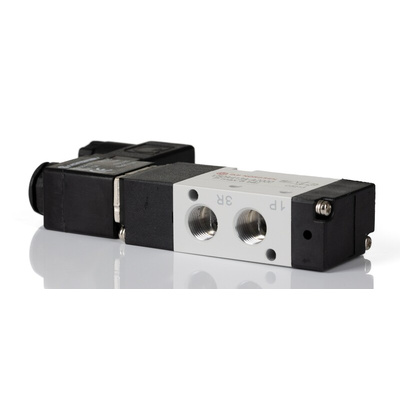

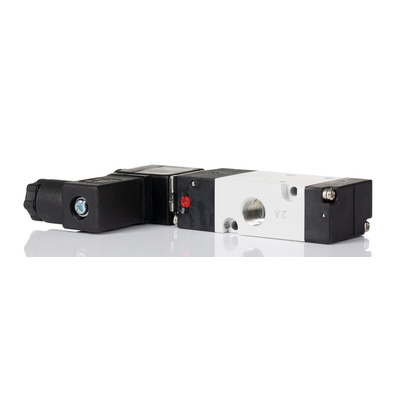

RS PRO Pneumatic Solenoid Valve, Solenoid/Air, G 1/8, V50 Series - 24 V DC

This RS PRO pneumatic solenoid valve allows you to control the flow of gas or air through your pneumatic system with ease. It's designed to be energy efficient, so you can be sure none of the power you run through it goes to waste.
The valve is suitable for both lubricated and non-lubricated air supplies, so it can manage the air pressure effectively, whichever medium you work with. A robust, soft-seal spool design controls the pressure, preventing leaks and keeping your valve in operation for a long time to come.
The product's compact design means it won't take up too much room in your workspace. You can mount it in a single line of pipes in your pneumatic system or manifold style, with several valves sitting on a centralised base. This flexibility allows you to build the valve pipework to your specifications.

Features and Benefits

• Solenoid/air actuation
• Die-cast aluminium body material
• 4423G connection port configuration
• G 1/8 connection port thread size
• Maximum flow rate of 480 L/min
• Maximum operating pressure of 8 bar
• Minimum operating pressure of 2 bar
• Operating temperature range of -5°C to +50°C
• Inline manifold mounting style
• Three ports
• Two positions
• Solenoid power consumption of 2.9 W
• Solenoid voltage of 24 V DC
• Compact, robust design
• High-flow inline valves
• Low-power, energy-efficient solenoids
