Molex 146153-0250 T-Bar WiFi Antenna, WiFi (Dual Band), Антенна

2.4 GHz / 5 GHz Balance Wi-Fi Antennas with Cable, Molex

These balance Wi-Fi antennas from Molex are available in two lengths: 100 mm (9076517) and 250 mm (9076510). With a micro-coaxial cable, both antennas ensure that you have a consistent and fast Wi-Fi connection for use with your devices.

The Wi-Fi antennas are ideal for use within applications such as Machine to Machine communication (M2M), smartmeters, Industrial, Scientific & Medical (ISM) band systems, cameras, navigation devices, mobile gaming devices and ZigBee IEEE 802.15.4 devices.

Features & Benefits of the Wi-Fi Antennas
• Dual band (2.4 GHz and 5 GHz)
• Double-sided adhesive mounting
• Linear polarization
• Omnidirectional radiation pattern
• Ground-plane independence
• High levels of radiation efficiency
• Operating temperature range: -30° C to +85° C

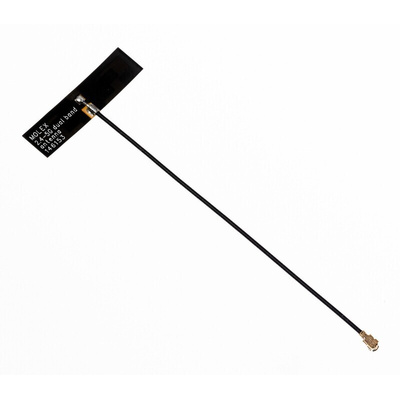

Molex Standalone Wi-Fi Antenna, Omnidirectional, 2.4 to 5GHz - 146153 Series - 146153-0250

This Molex dual-band Wi-Fi antenna is an ideal choice for network operations at 2.4GHz to 5GHz frequencies. As it's a ground-plane independent antenna, you can mount it on both mobile and fixed installations without losing radiation efficiency. The antenna comes with a micro-coaxial RF (radio frequency) connector that ensures high-speed Wi-Fi transmission with minimal signal loss. The 250mm cable is flexible for ease of installation in tight spaces. This type of antenna is commonly used in 4G, Wi-Fi and WLAN (wireless local area network) devices.

• Double-sided adhesive for simple mounting to a device
• Omnidirectional design for optimal signal transfer and reception from all directions
• Low decibel loss for a high signal efficiency rate of more than 58% on 5G networks and 66% on 2.4G networks
• Linear polarisation transmits electromagnetic waves in a single field for greater signal read

Applications

• Network access points
• Laboratory equipment
• Manufacturing machinery

What are the benefits of a 2.4GHz to 5GHz frequency range?

The 2.4GHz frequency offers excellent short-range coverage, while the 5GHz frequency has greater penetrating power through physical barriers. This Wi-Fi antenna enables signal transmission at both frequencies for greater versatility and enhanced compatibility.

2.4GHz Antennas

250 mm Wi-Fi Antenna with Cable, Data Sheet

250 mm Wi-Fi Antenna with Cable, Drawing

250 mm Wi-Fi Antenna with Cable, Application Note
