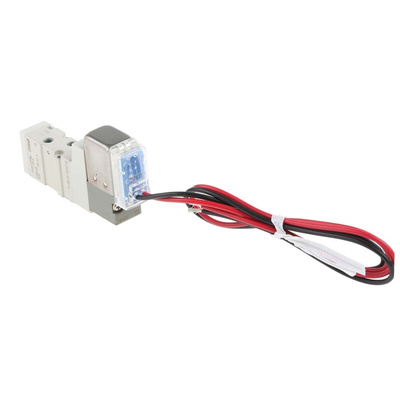

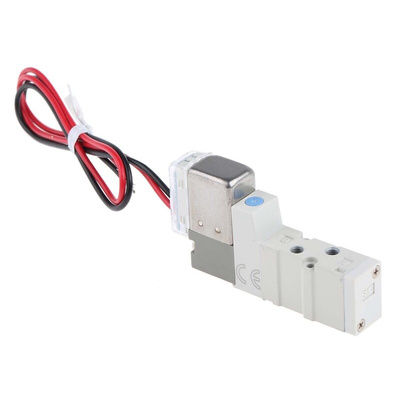

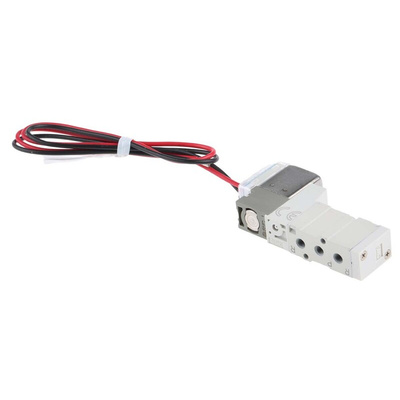

SYJ3120-5G-M3-Q, SMC 5/2 Pneumatic Solenoid Valve - Solenoid Metric M3 SYJ3000 Series 24V dc, Клапан

SMC Solenoid Valve

The SMC SY series 5/2 ports body ported solenoid valve has a supply voltage of 24VDC. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.5W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance.
SMC SYJ & VF series
Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C.

Features and Benefits

Maximum flow rate is 49.08NL/min
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Pilot valve individual exhaust for the pilot valve
Supplied with a lead wire of length 300mm
Without light/surge voltage suppressor

Certifications

IP65 rated

Datasheet
