FLUKE-700MTH Pressure Calibrator, For Use With 700 Series Connection to 1/4 inch Female Metric BSP 5000psi 1/4 NPT, 1/8

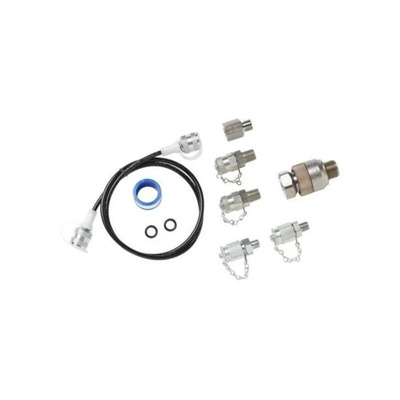

Fluke 700 Series Precision Transmitter Test Hose Kit

Fluke 700 pressure calibration test kits contain accessories designed to make pneumatic and hydraulic pressure test connections easy and leak free. The family of accessories includes: two special transmitter test hoses, the 5000 psi rated TTH5K ( 908-3782 ) and the 10,000 psi rated TTH10K ( 908-3786 ), providing No Tools Required (NTR) connections between hand pumps or pressure transmitter to the standard IEC " female input on most pressure transmitters worldwide. The 700MTH ( 908-3798 ) test hose is similar to the 700TTH but has a " male metric hose termination rather than the " NPT male connection. The 700M20TH ( 908-3795 ) is intended for connection to female Chinese M20 process connections.

FLUKE Pressure Calibrator, Premium Transmitter Test Hose Kit, 5000psi Maximum Pressure - FLUKE-700MTH

Need a connection solution for your gas custody transfers and hydraulic pressure tests? This transmitter test hose kit from FLUKE gets top marks. It's designed for use with FLUKE 700 series pressure calibrators, providing a precise fit and reliably accurate readings. As this handy set includes a 1/8in NPT fitting for instant connection to your calibrator or test pump, along with a 1/4in male metric/BSP for attaching to standard pipe threads, you won't need specialist tools to get up and running. The test hose is rated to 5000psi, so it's a sturdy customer that's suitable for most pressure calibration needs.

Features & Benefits

• Kit contains everything you need to make reliable test connections, so it's ready to go out of the box
• Compatible with a wide range of 700 series pressure calibrators, for ease of upgrading and switching between models

Applications

• Automotive calibrations
• Industrial diagnostics
• Fuel supply infrastructure

How accurate are FLUKE 700 series pressure calibrators?

The 721 (796-2699) and 721ex (908-3748) models feature isolated stainless steel pressure sensors that provide 0.025% accuracy. This minute margin of error makes them an ideal solution for calibrations that need to be spot-on every time.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Dual sensor pressure calibrator Data Sheet

Datasheet - FLUKE-700MTH
