PPMS, Jubilee 32 Piece Zinc-Plated Mild Steel Worm Drive Hose Clip Kit, 9.5 → 12mm and 30 → 40mm Inside Diameter, Комплект хомутов

Jubilee® Pocket Pack – Mild Steel

Original range Jubilee clips were first manufactured back in 1921, and today the brand is well-known and trademarked around the world. As the name and heritage would suggest, you can be assured of the highest quality products, all produced from premium grade materials and adhering to a wide range of quality standards and EU directives.
Jubilee’s original range of hose clamps is where it all started and these sturdy worm drive hose clips are suitable for the vast majority of applications. These mild steel zinc protected hose clips have a continuously threaded band so clips are flexible and easy to adjust to the required size. In addition, the rolled edges and smooth interior of the band ensures protection for all types of hoses, even soft rubber or silicone.

Pocket Pack

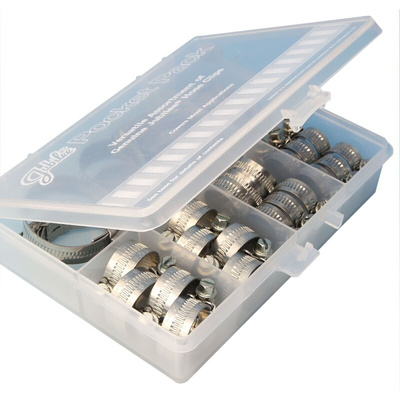

This convenient Pocket Pack contains 32 of the most popular Jubilee clips, suitable for applications ranging from 9.5 mm to 40 mm. The set is supplied in a handy plastic container which is ideal for use in any industrial environment.

Features and Benefits

240 hour corrosion resistance NSS (Neutral Salt Spray) Test – equivalent of 60 years in an outdoor UK environment
Independently tested by the British Standards Institute (BSi) to carry the British Standard Kitemark™
Complies with DIN 3017 Standard guaranteeing that the hose clamp will join with a perfect tight fit
Also complies with SAE internationally-recognised standards
Hose clips are manufactured in an ISO 9001:2008 certified plant so you can be assured of high quality production

Pack Contents

6 x 000 (9.5-12 mm adjustment)
6 x M00 (11-16 mm adjustment)
6 x 00 (13-20 mm adjustment)
4 x 0 (16-22 mm adjustment)
4 x 0X (18-25 mm adjustment)
2 x 1A (22-30 mm adjustment)
2 x 1 (25-35 mm adjustment)
2 x 1X (30-40 mm adjustment)

Applications

These mild steel zinc protected clips are ideally suited for use in the following environments:

Agriculture
Automotive
DIY
Industrial
