PPJJSS, Jubilee 54 Piece Stainless Steel 304 Mini Fuel Clip, Nut and Bolt Clip Hose Clip Kit, 7 → 9mm and 14 →, Комплект хомутов

Jubilee® Junior Pocket Pack – Stainless Steel 304 Grade

Jubilee clips were first manufactured back in 1921, and today the brand is well-known and trademarked around the world. As the name and heritage would suggest, you can be assured of the highest quality products, all produced from premium grade materials and adhering to a wide range of quality standards and EU directives.
These Jubilee Juniors are mini clips – sometimes called nut and bolt clips – which are perfect for those smaller bore hoses with relatively low pressures, such as fuel lines.

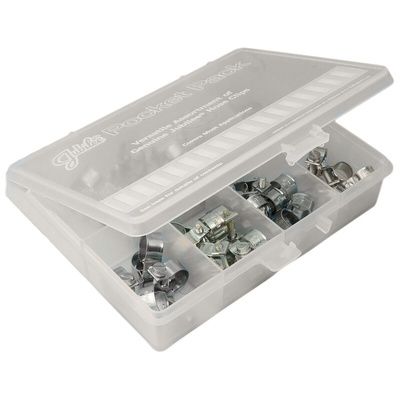

Pocket Pack

This convenient Junior Pocket Pack contains 54 of the most popular Junior clips, suitable for low pressure applications ranging from 7 mm to 16 mm. The set is supplied in a convenient plastic container which is ideal for use in any industrial environment.

Features and Benefits

1000 hour corrosion resistance NSS (Neutral Salt Spray) Test – perfect for marine applications
Complies with SAE internationally-recognised standards
Hose clips are manufactured in an ISO 9001:2008 certified plant so you can be assured of high quality production

Pack Contents

6 x NB0709 (7-9 mm adjustment)
6 x NB0810 (8-10 mm adjustment)
6 x NB0911 (9-11 mm adjustment)
8 x NB1012 (10-12 mm adjustment)
10 x NB1113 (11-13 mm adjustment)
8 x NB1214 (12-14 mm adjustment)
6 x NB1315 (13-15 mm adjustment)
4 x NB1416 (14-16 mm adjustment)

Applications

These 304 grade stainless steel Jubilee clips are ideally suited for use in the following environments:

Marine
Oil and gas

Datasheet

Selection Guide 2 Pages
