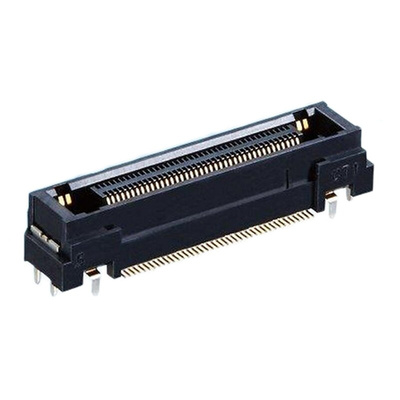

FX23L-40S-0.5SV, Hirose FX23 Series Right Angle PCB Mount PCB Socket, 40-Contact, 2-Row, 0.5mm Pitch, Solder Termination

Hirose FX23L 0.5mm Low Profile Board to Board High Transmission Header and Receptacle Connectors

FX23L 0.5mm pitch board to board header and receptacle connectors with an innovative contact design that enables a high speed transmission rate of up to 8 Gbps. The FX23L 0.5mm board to board low profile PCB header connectors have a unique floating feature embedded inside the base of the housing that absorbs mounting misalignment by allowing an alignment movement of ±0.6mm in the X and Y directions, additional guide posts also offer excellent mating alignment. These FX23L 0.5mm board to board PCB connectors have a low profile design allowing a parallel connection with a stacking height of just 12mm when header and receptacle are mated. The hybrid space saving design of these FX23L board to board connectors features both 3A power and 0.5A signal contacts with the power contacts located either side of the connector housing. Typical applications for these The FX23 0.5mm board to board high transmission connectors include industrial equipment, broadcast equipment, POS terminals, medical devices, BTS, servo motors, PLC and car navigation equipment.

Hirose FX23L 0.5mm Low Profile Board to Board High Transmission Header and Receptacle Connectors

FX23L Series 0.5mm Pitch Board to Board R/A PCB Socket, 40P

FX23 Series 0.5mm Pitch Low Profile High Speed Transmission Board to Board Connectors
