01GA2006H, Castle Vibration Meter - Acceleration, 3 Axis, Виброметр

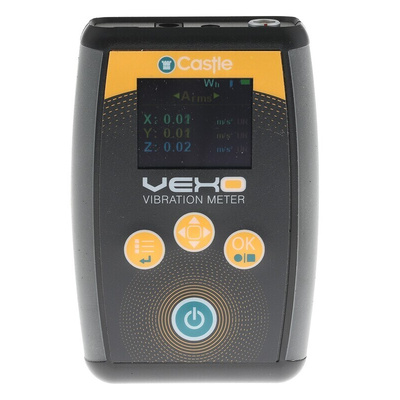

Castle Vexo H Hand Arm Vibration Meter

The Castle Vexo H (GA2006H) is a dedicated hand-arm vibration meter used by health and safety departments or professionals for compliance with The Control of Vibration at Work Regulations 2005. The dedicated nature of this meter means it is incredibly simple to use, with no initial set up required and results given in the exact format required for the regulations.

Features and Benefits

Dedicated Hand Arm Virbation Measurement
Triaxial Accelerometer
Clear OLED display
Simple three-button operation
Large dynamic range
Large flash memory and can store up to 992 individual recordings
Overload and under range indicators
Rechargeable battery pack and charger
Rugged accelerometer and cable
VibDataLITE software included

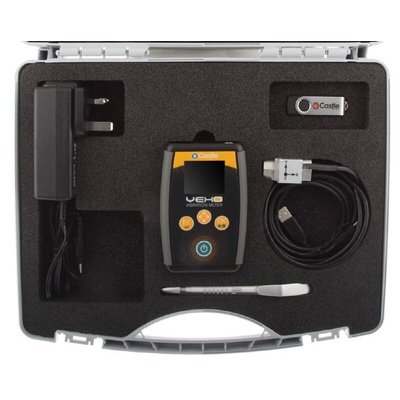

The Vexo H has acceleration ranges between 0.005g and 204g. It is supplied with a triaxial accelerometer with which simultaneous X, Y and Z readings are taken and displayed on the screen in real-time. The measurements are taken in metres per second squared or 'g', and output is given for Aeq, Peak and Vector Sum. Included with the meter is an accelerometer with 1m cable, a mounting plate, vibdataLITE PC software, USB cable, rechargeable battery pack, battery charger, instrument carry case, pen, quick start guide, and user manual. It has an OLED display to show all the measurement parameters.

Note:
The VibdataLITE PC software (supplied) enables USB Download direct from the instrument and offers a simple, visual display of data. It can be upgraded to the separately-available option software VibdataPro (909-1901).

Certifications

Acceleration ranges between 0.005g and 204g
Simultaneous X, Y and Z readings
Metres per second squared or 'g'
Aeq, Peak and Vector Sum parameters
HSE points display
Time to reach to Action and Limit Values

User Manual

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

UN38.3 Lithium Battery Test Summary

Datasheet - 01GA2006H
