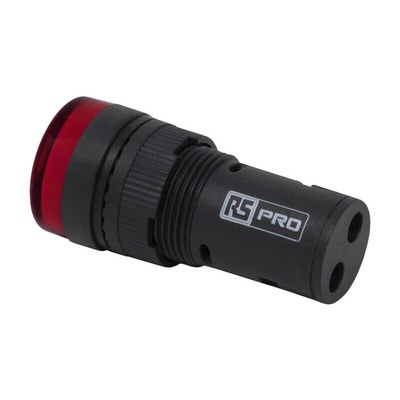

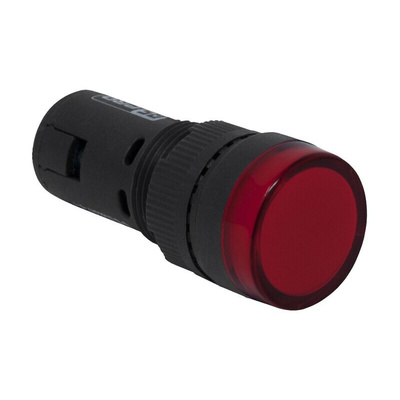

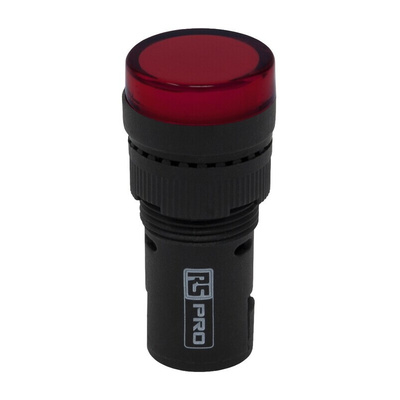

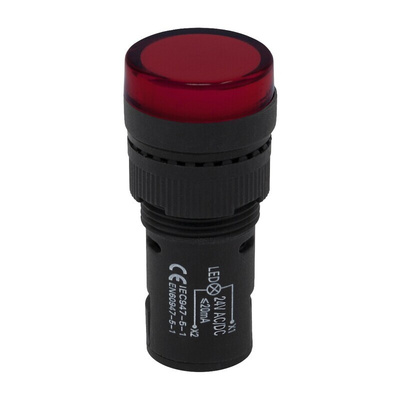

RS PRO, Panel Mount Red LED Pilot Light, 16mm Cutout, IP40, Round, 24V ac/dc

RS PRO, Panel Mount Red LED Indicator Light, 16 mm Cutout, IP40, Round, 24 V AC/DC

Keep an eye on operating electrical components or systems with these round red LED pilot lights.

The red lights have a brightness of ≥60 cd/m³ and come with an innovative multi-chip technology, making them easy to see and brighter than regular, same-wattage incandescent bulbs – even in low light conditions. They have a 3.5 year lifetime (roughly 30,000 hours), with panel mounting that makes them safe for use on most surfaces. A 16 mm design gives this unit a smaller footprint, while captive screw terminals make wiring easy and safe.

These pilot lights have an IP40 rating to keep them well-protected from any 1 mm wire and tool damage. A reliable means to monitor electrical systems, they're used in aircraft instrument panels, car dashboards and train doors.

Features and Benefits

• Red pilot lights
• An IP40 rating provides protection against tools and wires over 1 mm
• LED lamp
• Cutout diameter of 16 mm
• Minimum operating temperature of -25°C
• Maximum operating temperature of +55°C
• Voltage rating of 24 V AC/DC
• Current rating of 20 mA
• Round-shaped
• Screw terminals
• Panel mounting

Small Pack Size

Per Unit, RS stock no: 909-2443

Large Pack Size

Pack Quantity of 5, RS stock no: 271-7477

RS Pro Datasheet
