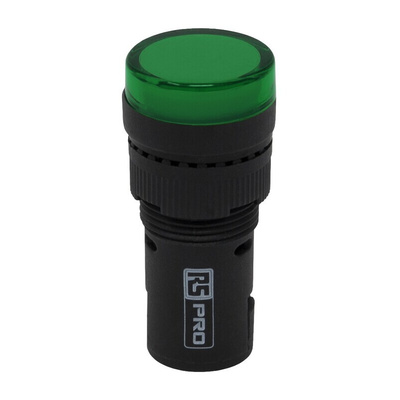

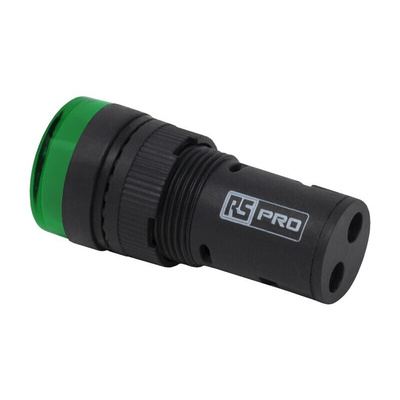

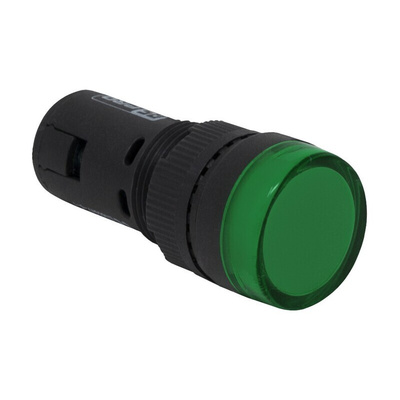

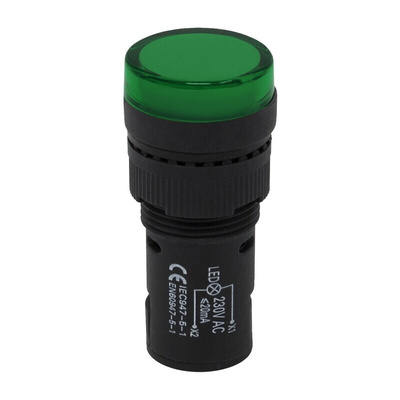

RS PRO, Panel Mount Green LED Pilot Light Complete, 16mm Cutout, IP40, Round, 230V ac

RS PRO, Panel Mount Green LED Pilot Light, 16 mm Cutout, IP40, Round, 24 V ac/dc

Use these round green LED pilot lights to check your operating electrical components or systems.

A 16 mm cutout design makes the lights space-saving, while the multi-chip technology ensures they're brighter than usual incandescent bulbs that have the same wattage.

These pilot lights are also easily visible in low light conditions thanks to the ≥60 cd/m³ brightness. Installation is very simple thanks to their versatile panel mounting and the captive screw terminals make connecting wires uncomplicated. Additionally, the lights have nearly 30,000 hours or 3.5 year longevity.

These pilot lights eliminate the possibility of any damage from tools and wires over 1 mm with their IP40 rating. Commonly used to monitor electrical systems, they're found in various similar applications – from aircraft instrument panels to car dashboards and train doors.

Features and Benefits

• Green pilot lights
• LED lamp
• IP40 rating protects against tools and wires over 1 mm
• Cutout diameter of 16 mm
• Minimum operating temperature of -25°C
• Maximum operating temperature of +55°C
• Voltage Rating of 230 AC/DC
• Current rating of 20 mA
• Round-shaped
• Screw terminals
• Panel mounting
