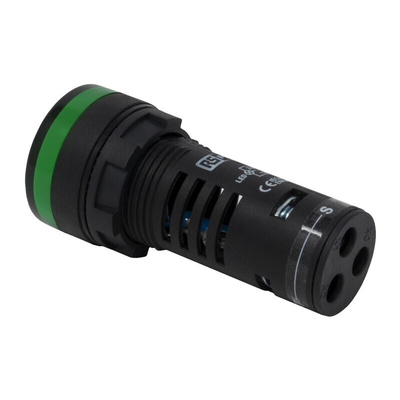

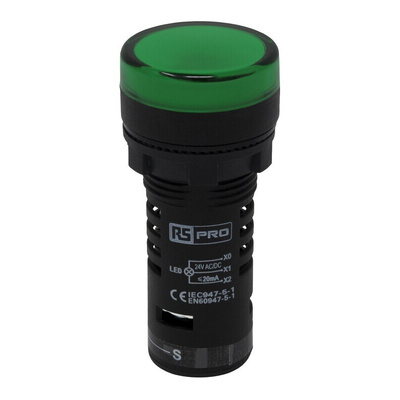

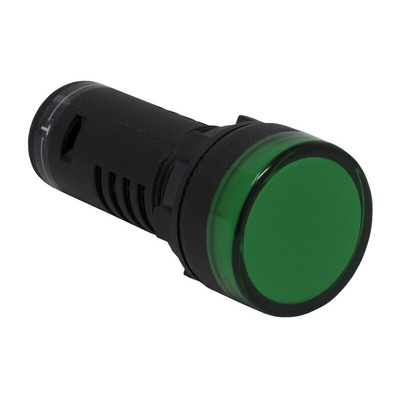

RS PRO, Panel Mount Green LED Pilot Light, 22mm Cutout, IP65, Round, 24V ac/dc

RS PRO, Panel Mount Green LED Pilot Light Complete With Test Circuit, 22 mm Cutout, IP65, Round, 24 V ac/dc

These green LED pilot lights will help you identify the source of any malfunctions with your circuit – just use their spare terminal to connect the lights to lamp-test circuits.

IP65-rated, the lights have adequate protection from dust and low-pressure water jets. A ≥60 cd/m³ brightness makes them sure they're better than regular incandescent bulbs and easy to see, while the multi-chip technology helps emit an even glow. The total lifespan of these lights stands at 3.5 years or 30,000 hours and their space-saving 22 mm cutout design makes them compact.

This pilot light complete with test circuit can be panel-mounted for easy installation on most surfaces, and captive screw-clamp terminals mean you can connect wires without soldering. Ideal for testing circuits, they can also be used as normal LED pilot lights. The lights are suitable for applications ranging from aircraft instrument panels to kitchen appliances.

Features and Benefits

• Green pilot lights complete with test circuit
• IP65 rated so they are dust-tight and protected against low-pressure water jets
• LED lamp
• Cutout diameter of 22 mm
• Operational Life up to 30,000 hours
• Voltage rating of 24 V AC/DC
• Current rating of 20 mA
• Round-shaped
• Screw terminals
• Panel mounting

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
