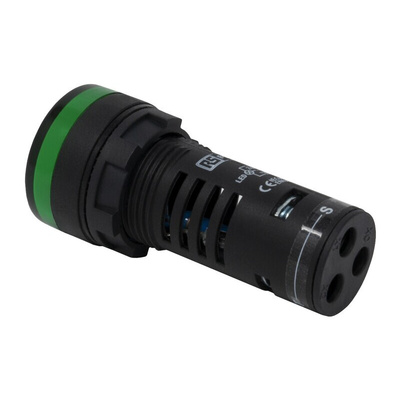

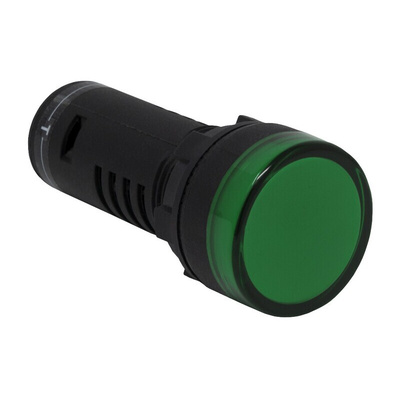

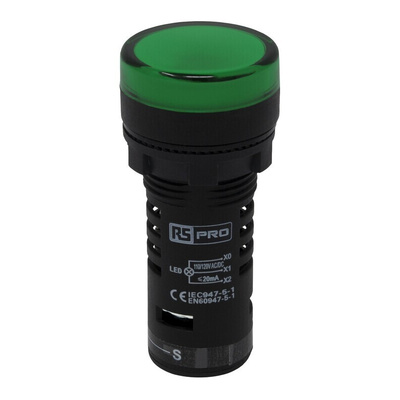

RS PRO, Panel Mount Green LED Pilot Light, 22mm Cutout, IP65, Round, 110V ac/dc

RS PRO Panel Mount Green LED Pilot Light Complete With Test Circuit, 22 mm Cutout, IP65, Round, 110 V AC/DC

When you need a device to indicate the operating condition of your equipment or industrial process, use these RS PRO panel-mounted green LED pilot or power indication lights. An extra terminal on these components allows you to connect a test light.


They provide a brilliant light that is brighter than incandescent bulbs for easy visibility. They also consume low levels energy and last for up to 30,000 hours. For quick and easy panel installation, they include a lock nut and screw terminals. They have an IP65 rating, which means they're resistant to dust and low-pressure water jets.


These indicators are found in a range of automotive and telecommunications applications and equipment. As they meet electrostatic discharge (ESD) standards in the United Kingdom (BS EN 61340-5-1:2007) and the United States (ANSI/ESD S20.20:2014), they ensure that the risk of discharge is minimal.

Features and Benefits

• Current rating of 20 mA


• Cutout diameter of 22 mm


• IP65 rated


• LED lamp type


• Panel mounting type


• Green pilot light colour


• Round pilot light shape


• Screw terminal type


• Voltage rating of 110 V AC

RS Pro Datasheet
