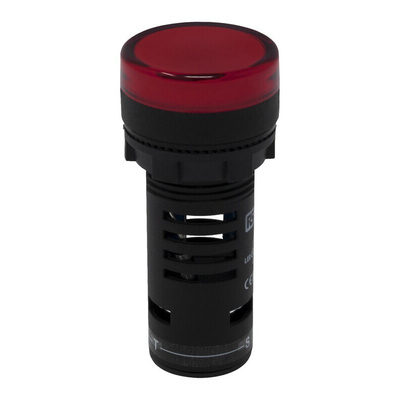

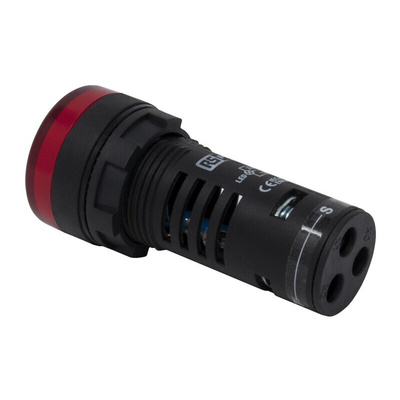

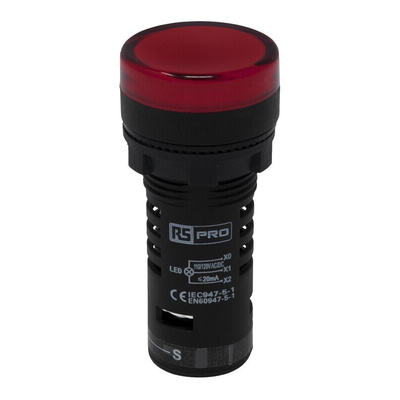

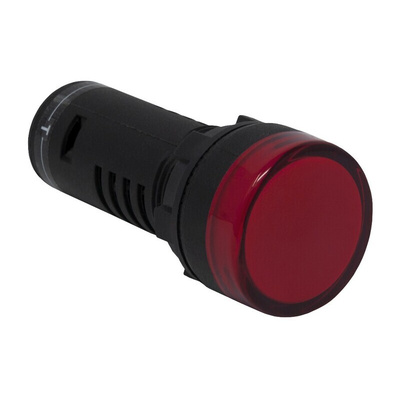

RS PRO, Panel Mount Red LED Pilot Light, 22mm Cutout, IP65, Round, 120V ac/dc

RS PRO Panel Mount Red LED Pilot Light Complete With Test Circuit, 22 mm Cutout, IP65, Round, 120 V AC/DC

These RS PRO panel-mounted red LED pilot or power indicator lights are used to display the status of your equipment or industrial process. For added versatility, a test light can be connected to the additional terminal on these components.


They provide brighter light than incandescent bulbs, so they're easy to see. They also use less energy and can last for up to 30,000 hours. A lock nut and screw connectors are included for quick and simple panel installation. They have an IP65 rating, which means they can withstand dust and low-pressure water jets.


This type of indicator may be used in a variety of applications and equipment in the telecommunications and automotive industries. As they meet United Kingdom (BS EN 61340-5-1:2007) and United States (ANSI/ESD S20.20:2014) electrostatic discharge (ESD) standards, there's minimal risk of discharge.

Features and Benefits

• Current rating of 20 mA


• Cutout diameter of 22 mm


• IP65 rated


• LED lamp type


• Panel mounting type


• Red pilot light colour


• Round pilot light shape


• Screw terminal type


• Voltage rating of 120 V AC/DC

RS Pro Datasheet
