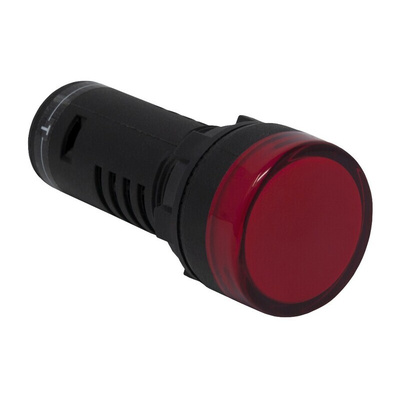

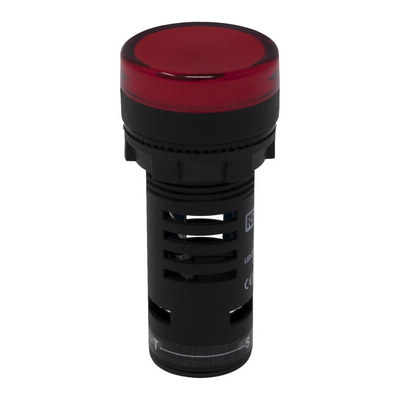

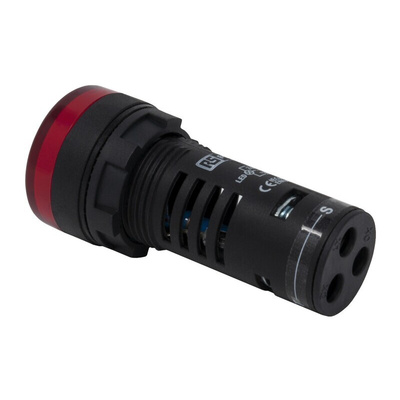

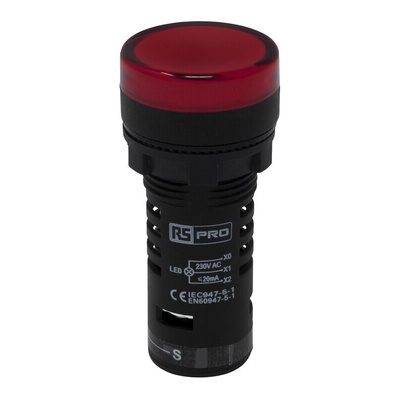

RS PRO, Panel Mount Red LED Pilot Light, 22mm Cutout, IP65, Round, 230V ac

RS PRO Panel Mount Red LED Pilot Light Complete With Test Circuit, 22 mm Cutout, IP65, Round, 230 V AC

Use these red LED pilot or power indication lights from RS PRO to show the state of your equipment or industrial process. Thanks to their extra terminal, you can connect a test light.


They're easy to see as they provide brighter light than incandescent bulbs. They also offer a long service life of up to 30,000 hours and consume low levels of energy. For quick and easy panel installation, they come with a lock nut and screw terminals. They have an IP65 rating, indicating that they can tolerate dust and low-pressure water jets.


These indicators meet electrostatic discharge (ESD) standards in the United Kingdom (BS EN 61340-5-1:2007) and the United States (ANSI/ESD S20.20:2014) to ensure minimal risk of discharge. You'll commonly find these indicators in a wide range of telecommunications and automotive equipment and applications.

Features and Benefits

• Current rating of 20 mA


• Cutout diameter of 22 mm


• IP65 rated


• LED lamp type


• Panel mounting type


• Red pilot light colour


• Round pilot light shape


• Screw terminal type


• Voltage rating of 230 V AC
