RS PRO, Panel Mount Red LED Pilot Light, 22mm Cutout, IP30, Round, 230V ac

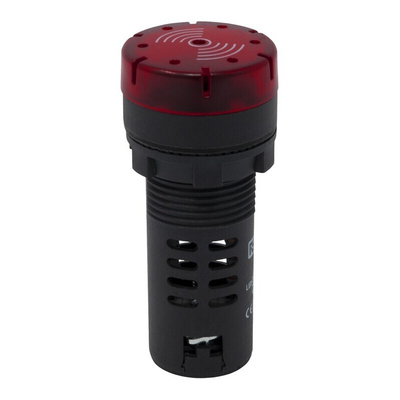

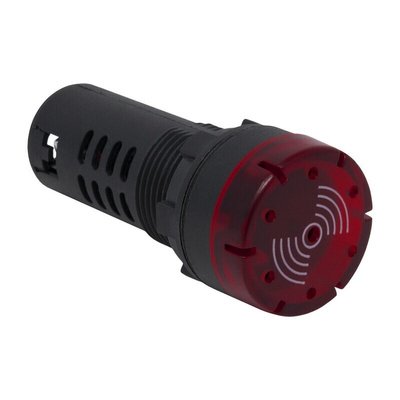

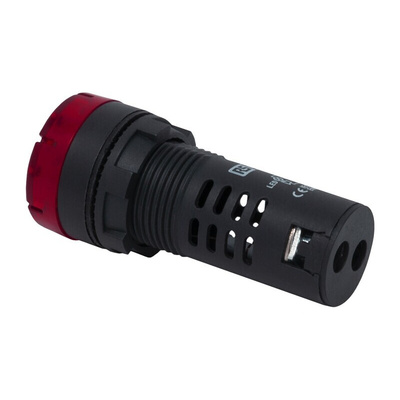

RS PRO, Panel Mount Red LED Pilot Light Complete With Sounder, 22 mm Cutout, IP30, Round, 230 V ac

These red LED pilot lights with a sounder are part of our trusted RS PRO range. They're used in alarm circuits for producing an 80-dB sound that's audible up to 16 metres away. They also come with a flashing light function.

The pilot lights use an innovative multi-chip technology that makes them super-bright, with an even glow of ≥60 cd/m³. An energy-saving design boosts their lifetime to up to 30,000 hours or 3.5 years.

IP30-rated, these red lights provide protection against small tools and wires larger than 2.5 mm. Any need for soldering is also eliminated when connecting wires thanks to their captive screw-clamp terminals. They have a panel mounting that allows them to be fitted on most surfaces or combined with new or existing alarm circuits. Suitable for systems needing fail-safe indication, these LED pilot lights are used in automatic equipment, condition panels and even telephones.

Features and Benefits

• Red pilot lights with sounder for use with alarm circuits
• An IP30 rating provides protection against tools and wires over 2.5 mm
• LED lamp
• Cutout diameter of 22 mm
• Minimum operating temperature of -25°C
• Maximum operating temperature of +55°C
• Voltage rating of 24 V AC/DC
• Current rating of 20 mA
• Round-shaped
• Screw terminals
• Panel mounting

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
